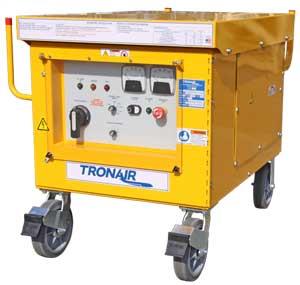

28.5 RCT 60HZ SGL NO CBL (CE

Standard Features

• Quiet operation, 52dB during normal operation, 60dB maximum
• 20 A, 115 VAC, duplex GFCI weatherproof recptacle with cover
• MIL-STD-704F, 18" NEC and CE compliant
• Low profile and compact design
• Sturdy all weather IP54 enclosure with cord hangers
• Long life LED indication lights that double as a diagnostic tool
• Emergency stop switch
• Large 9 in (23 cm) rubber ridgid and lockable swivel casters for easy maneuverability
• Finish: Durable Powder Coat Tronair yellow
• Input - Easy to change multi-volt transformer
• Input - Main power disconnect switch
• Input - 25 KVA transformer ensures full power during engine starts
• Input - Voltage Range 200-480V +/- 10%
• Input - Frequency 50 Hz / 60 Hz
• Output - Current Limit (adjustable) 100-2000 max amps DC maximum
• Output - Nominal Continuous Power 600 amps at 28.5 VDC
• Output - DC Voltage (adjustable) 16-35V
• Output - Nominal DC Voltage 28.5 VDC
• Output - Clean power, low voltage ripple <.2 VDC RMS
• Output - DC On/Off switch on control panel
• Output - Remote DC output On/Off engine start capable
• Output - Remote DC voltage sensing
• Output - Simple to use operator control panel
• Protection - Output over/under voltage
• Protection - Output over current
• Protection - Input phase loss detection, missing phase
• Protection - Input over/under voltage
• Protection - Input shunt-trop circuit breaker 100 amps
• Protection - Transformer over temperature
• Protection - SCR over temperature
• Protection - Energy saving variable speed thermal control cooling fan
