TRONAIR

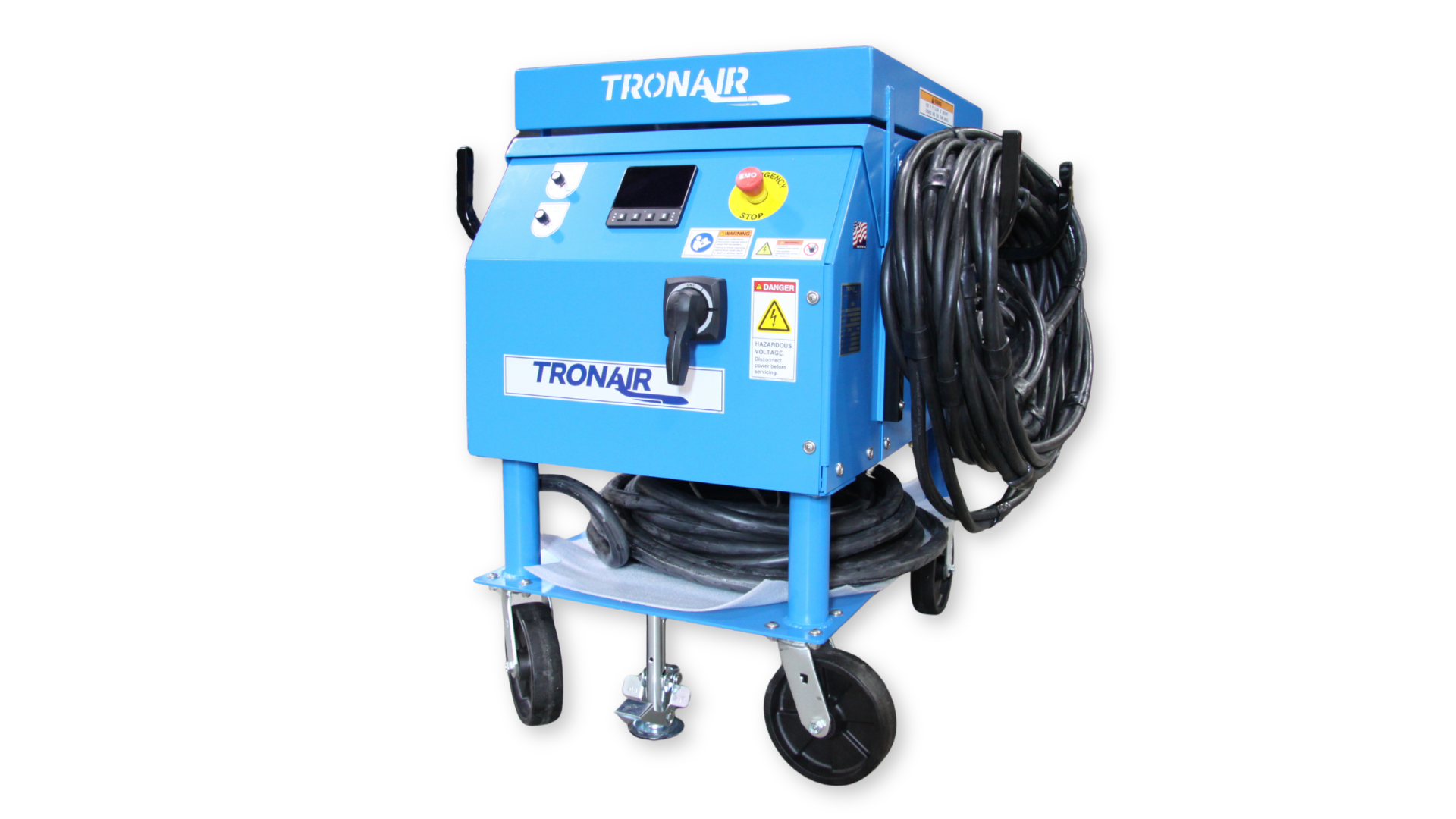

28.5 vdc, 60Hz Rectifier

1128

Model1128

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Front Panel Usage History Summary
  • Emergency Power "OFF" Switch
  • Integrated Communication Ports
  • Input High Voltage Protection
  • Adjustable Output Current Limit from 150 amps to full rated current (150A-2000A)
  • Voltage & Current Monitoring
  • 18" Frame legs
  • Elapsed Time Meter
  • Meets NEC 18" Rule, Article 513 NEC

Optional Features

  • 50 ft or 100 ft input cable
  • Cable hangers
  • Storage basket on top surface
  • Control Panel Voltage Adjust
  • Single or Dual Output
TRONAIR

1128

Request a Quote

Specifications

Dimensions

  • Height In (Cm): 33.5 in (85 cm)
  • Length In (Cm): 42 in (107 cm)
  • Weight Lb (Kg): 700 lbs (318 kg)
  • Width In (Cm): 33.5 in (85 cm)

Electrical

  • Input Cable Ft (M): 50 ft (12.25 m) standard input cable, 100 ft (30.5 m) optional input cable
  • Input: 200-480 V +/- 10%
  • Output Cable: Optional Single: 20 ft (6 m) w/ AN 2551 connector aircraft DC plug Dual: 20 ft (6 m) and 50 ft (15.25 m) w/ AN 2551 connector aircraft DC plug
  • Phase: 3 PH, 60 Hz
  • Voltage: 28.5VDC
