MALABAR

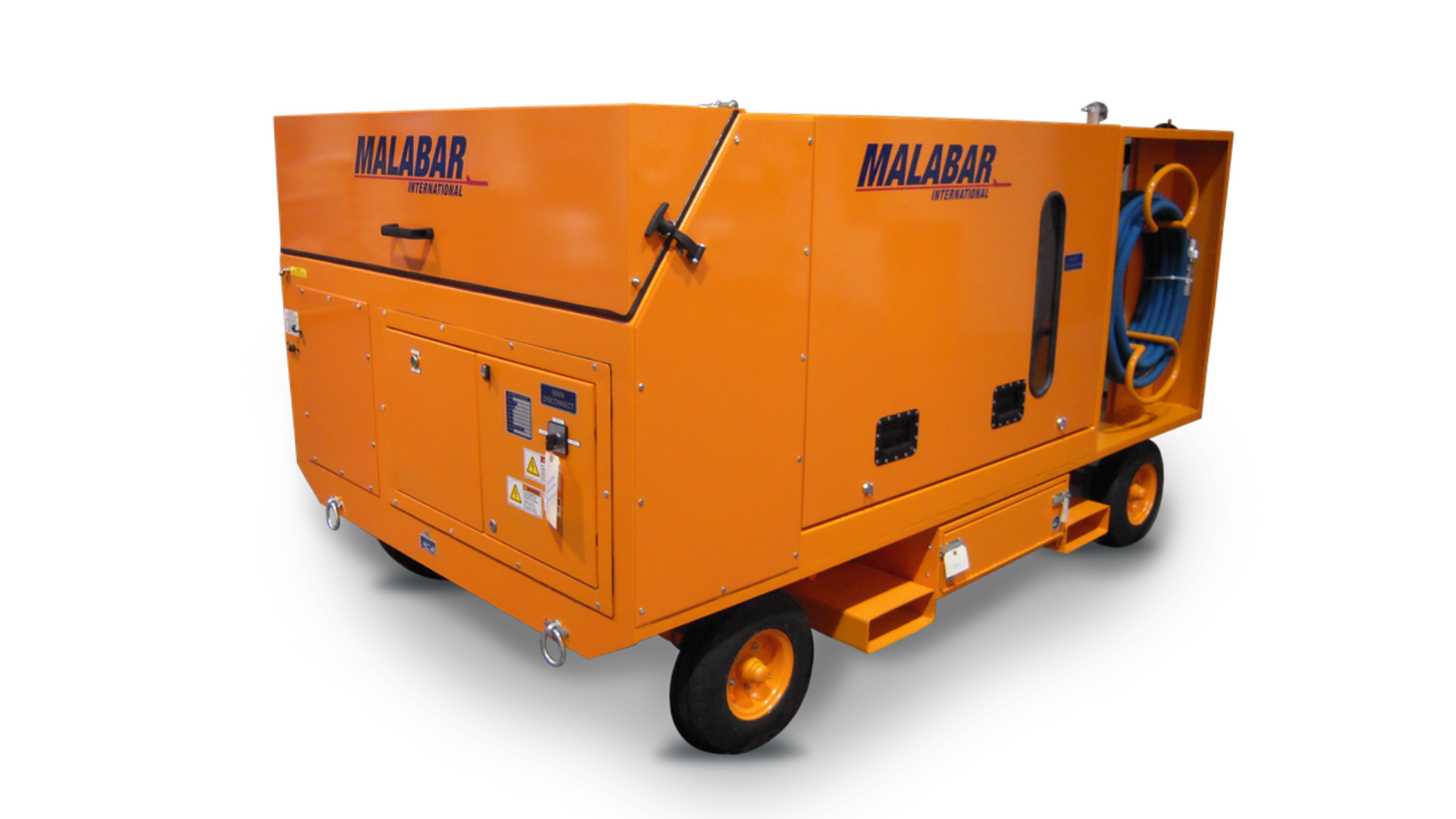

A350 Supplemental Coolant System Fill/Drain Cart
1016000-3
SKU:Model1016000-3
Does this product fit your model?
View Aircraft Applications
Available to Order
Separate Adaptor may be required for some aircraft models. View Adaptor
Standard Features
- Compatible with PGW fluid
- Nitrogen system for aircraft draining/purging operations
- 45 gallon clean and waste stainless steel fluid reservoirs
- PLC sets system configuration and fluid flow rates for various operating modes automatically
- Differential pressure switches on filters to signal filter condition
- Storage cabinet for adapter tools
- High performance pumps and pump drives
- Vacuum system for fluid de-aeration
- Operator panel with HMI touchscreen, illuminated fluid sight glasses and an emergency stop button
- Easy access doors and hose racks
- Static ground reel
- 1 year standard warranty
- Shipment on domestic skid
Optional Features
- Diesel generator set
- 380/480V input power
- 200/240V input power
- Export crating
Variants
MALABAR
1016000-3
Specifications
Accessories and Spares
Aircraft Applications
Resources
Specifications
Performance
- Clean Reservoir Capacity (Gal): 45
- Maximum Towing Speed (Mph): 10
- Nitrogen Inlet: 7/16-20 (-4), 37° flared male port
- Waste Reservoir Capacity (Gal): 45
Fluids
- Fluid: PGW (60% propylene glyco/water, clear)
Dimensions
- Height In (Cm): 65 (165)
- Length In (Cm): 120 (304.8)
- Weight Lb (Kg): 3029 (1374)
- Width In (Cm): 68 (172.7)
Filtration
- Return Fluid Filter: 12 micron absolute
Accessories and Spares
Aircraft Applications
Resources
- Model 1016 Coolant Cart Training
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
