B787 Coolant Service Cart
1010000A-2
SKU:Model1010000A-2
Does this product fit your model?
View Aircraft Applications
Available to Order
Separate Adaptor may be required for some aircraft models. View Adaptor
Standard Features
- Materials compatible with BMS 3-42 fluid
- Nitrogen system for aircraft draining/purging operations
- 50 gallon clean and waste stainless steel fluid reservoirs
- PLC sets system configuration and fluid flow rates for various operating modes
- Differential pressure switches on filters to signal filter condition
- Storage cabinets for K-Tool Adapter Kit K21016-130
- High performance pump and pump drive
- Vacuum system for fluid de-aeration

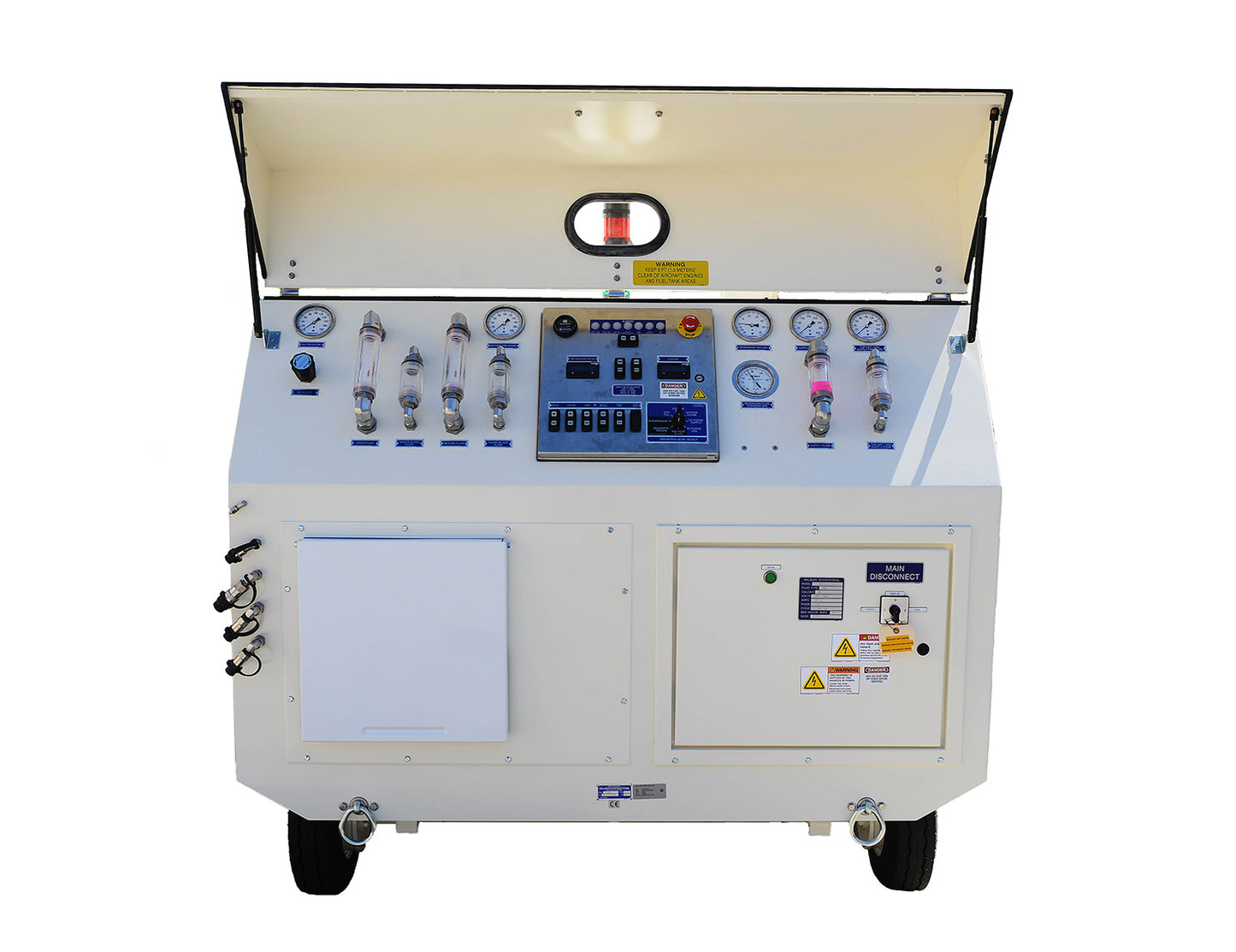

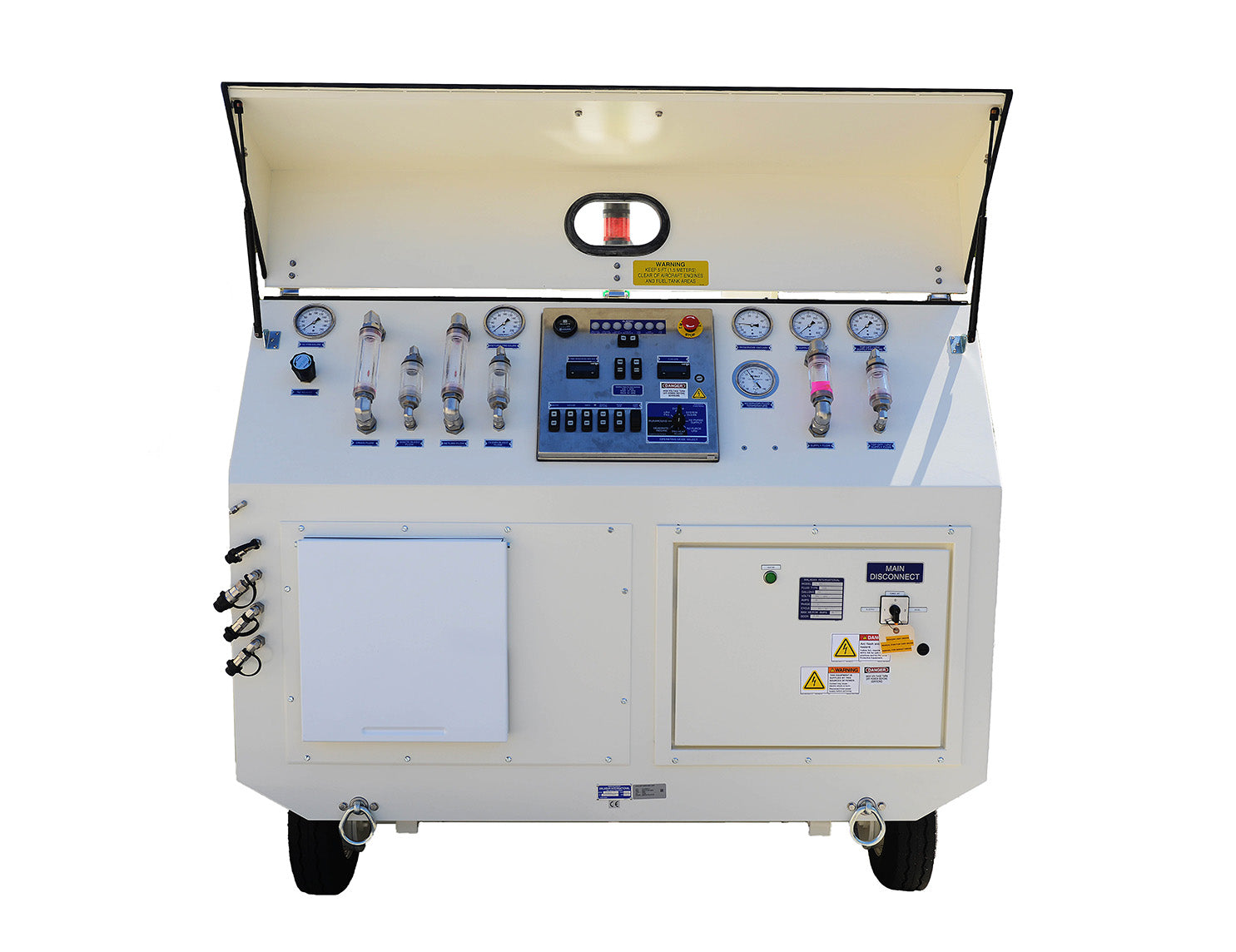

- Operator panel with digital flow meter, fluid temp gauge, pressure gauges, mode selector, vacuum and nitrogen pressure control, alarm indicators, illuminated fluid sight glasses, a cycle timer and an emergency stop button
- Easy access doors and hose racks
- Static ground reel
- 1 year standard warranty
- Shipment on domestic skid
Optional Features
- Tarp
- Non-marking tires
- Foam filled tires
- 380/480V input power
- 200/240V input power
- Folding shelf
- Export crating
Variants
- 1010000A-1 - TARP, NON-MARKING TIRES, 380/480V, POWER PLUG 30A (BOEING ONLY), FOLDING SHELF, STAINLESS STEEL BRAID HOSE (BOEING CONFIG. ONLY)
- Currently Viewing 1010000A-2 - FOAM FILLED TIRES, 380/480V, FOLDING SHELF
MALABAR
1010000A-2
Specifications
Accessories and Spares
Aircraft Applications
Resources
Specifications
Performance
- Clean Reservoir Capacity (Gal): 50
- Maximum Towing Speed (Mph): 10
- Waste Reservoir Capacity (Gal): 50
Fluids
- Fluid: BMS3-42
Dimensions
- Height In (Cm): 65 (165)
- Length In (Cm): 120 (304.8)
- Weight Lb (Kg): 2900 (1315)
- Width In (Cm): 68 (172.7)
Filtration
- Return Fluid Filter: 10 micron absolute
Accessories and Spares
- K21016-130 — K-Tools Adapter Set (Boeing - 787)
Aircraft Applications
Resources
- Model 1010A Training
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
