TRONAIR

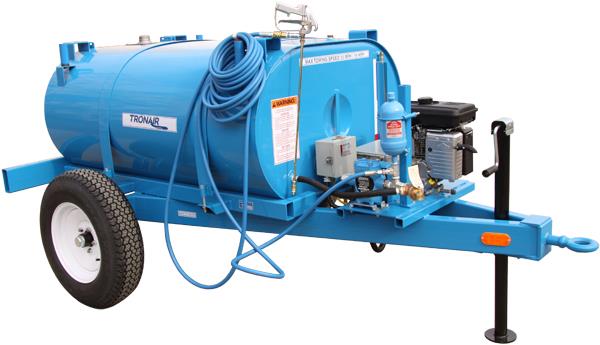

DEICER, 275GAL,240VAC, 3PH(CE)
09-6201-0010
SKU:Model09-6201-0010
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- Standard Features for (09-6201 Series) deicing machines:
- 6.5 HP industrial Briggs & Straton® engine
- Temperature adjustable to 200º F (93º C)
- Safety relief valve
- Suction strainer
- Type I fluid only
- Positive displacement pump with accumulator
- 50 ft (15 m) output hose
- 250 psi (17 bar) maximum pressure
- 7 gpm (27 lpm) maximum flow
- 4 - 5 hour recovery time 60 to 180º F (16 to 82º C)
- Sturdy steel trailer with pneumatic tires
- 275 gal (1041 l) steel reservoir with 10 in (25 cm) access cover
- 11 kw immersion heater
- Finish: Durable Powder Coat Tronair Blue frame, steel tank
TRONAIR
09-6201-0010
Specifications
Dimensions
- Height In (Cm): 46 (117)
- Length In (Cm): 112 1/2 (286)
- Weight Lb (Kg): 750 (340)
- Width In (Cm): 73 1/2 (187)
Electrical
- Maximum Draw Amp: 33
- Phase: 3
- Voltage: 200/240
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
