TRONAIR

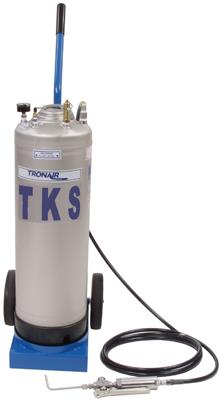

TKS Reservoir Service Unit
09-5046-6500
SKU:Model09-5046-6500
National Stocking Number: 1730-01-644-2492
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- Our TSK anti-icing deicer features:
- TKS anti-icing fluid
- 2 micron filtration
- 7 gal (27 l) capacity
- 85 psi (5.9 bar) maximum pressure
- Safety pressure relief set at 125 psi (8.6 bar)
- 15 ft (4.6 m) standard outlet hose with 37° JIC swivel connector and squeeze handle shutoff valve with #4 tube extension
- 8 in (20 cm) semi-pneumatic tires
- Easy to use squeeze handle
- Corrosion resistant ASME certified stainless steel tank
- Stainless steel welded parts
- Extended neck to reach fill port
TRONAIR
09-5046-6500
Specifications
Aircraft Applications
Resources
Specifications
Dimensions
- Height In (Cm): 42 (107)
- Length In (Cm): 13 (33)
- Weight Lb (Kg): 44 (19)
- Width In (Cm): 15 (38)
Performance
- Max Pressure Psi (Bar): 85 (5.9)
Aircraft Applications
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
