TRONAIR

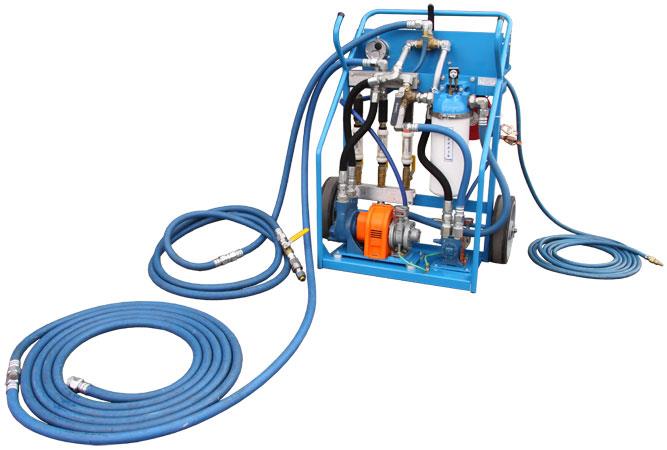

Fuel System Leak Test Unit

07-3015-0900

SKU:Model07-3015-0900

National Stocking Number: 4920-01-641-5345

Does this product fit your model?

View Aircraft Applications
Available to Order
View full details

Standard Features

  • Filters particles up to 1/2 micron
  • Air operated motors drive pumps
  • Air operated to eliminate spark hazard
  • 10 cfm (4.7 lps) @ 50 psi (33 bar) shop air required
  • Air inlet control valve, regulator and lubricator
  • 2 static discharge reels - 20 ft (6 m) and 50 ft (15 m) long
  • 50 psi (33 bar) maximum operating pressure
  • 50 psi (33 bar) safety valve
  • 98% particle removal
  • 3 flow settings - .5 - 1 gmp (1.9 - 3.8 lpm), .5 - 5 gpm (1.9 - 18.9 lpm), 1 - 15 gpm (3.8 - 56.8 lpm)
  • 40 ft (12.2 m) #16 discharge hose with shut-off valve
  • 20 ft (6.1 m) #16 suction hose with shut-off valve
  • Welded steel cart with tool tray and 14 in (35.6 cm) wheels
  • K-4409 - Engine hose
  • K-4410 - APU hose
  • K-4739 - Jumper Plug Kit (92700-20507-041)
  • Finish: Durable Powder Coat Tronair Blue
TRONAIR

07-3015-0900

Specifications

Aircraft Applications

Resources

Specifications

Dimensions

  • Height In (Cm): 43 (109)
  • Length In (Cm): 26 (65)
  • Weight Lb (Kg): 300 (136)
  • Width In (Cm): 34.5 (88)
