TRONAIR

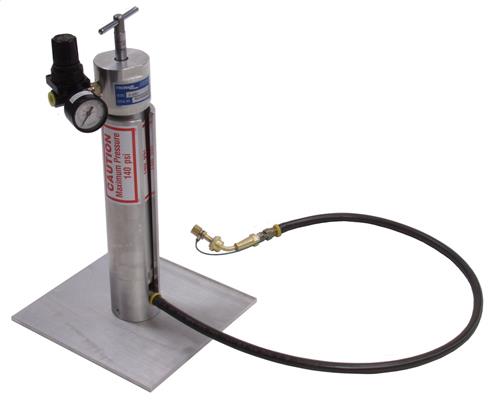

Shimmy Damper Servicing Tool
06-5056-1D00
SKU:Model06-5056-1D00
National Stocking Number: 1620-01-594-3638
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- Fluid servicing of shimmy damper unit on aircraft
- Designed for high viscosity silicone damper fluid
- Ties into compressed air system
- Easy service fluid specially designed for this application
- Designed in conjunction with the airframe manufacture(s)
- 14.7 cu-in per stroke displacement
- 125 psi (8.6 bar) maximum air pressure
- 175º F (79º C) maximum air temperature
TRONAIR
06-5056-1D00
Specifications
Aircraft Applications
Resources
Specifications
Dimensions
- Height In (Cm): 12 (30.5)
- Length In (Cm): 12 (30.5)
- Weight Lb (Kg): 9.5 (4.3)
- Width In (Cm): 12 (30.5)
Performance
- Max Pressure Psi (Bar): 125 (8.6)
Engine/Motor Specs
- Stroke Displacement In/Stroke (Cc/Stroke): 14.7 (240.9)
Aircraft Applications
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
