TRONAIR

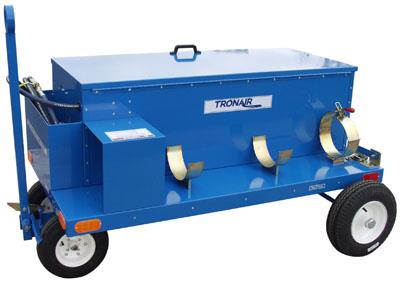

Engine Oil Service Cart (68 gal/257 l)
06-5025-1512
SKU:Model06-5025-1512
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- 68 gal (257 l) capacity
- 100 psi (6.9 bar) maximum pressure
- 14 gpm maximum flow
- 2 micron filtration (beta rating > 2000 @ 4µm per ISO 4572)
- High displacement pneumatic pump driven by self-contained nitrogen bottle
- 15 ft (4.6 m) #6 hose with 37º JIC female swivel connector and shut-off valve
- Front wheels lock with towbar in upright position
- Finish: Durable Powder Coat Tronair Blue (06-5025-1512, 06-5025-3610)
TRONAIR
06-5025-1512
Specifications
Aircraft Applications
Resources
Specifications
Fluids
- Fluid: MIL-PRF-5606 / MIL-PRF-83282
Dimensions
- Height In (Cm): 52 1/2 (133)
- Length In (Cm): 73 (185)
- Weight Lb (Kg): 390 (177)
- Width In (Cm): 50 (127)
Aircraft Applications
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
