TRONAIR

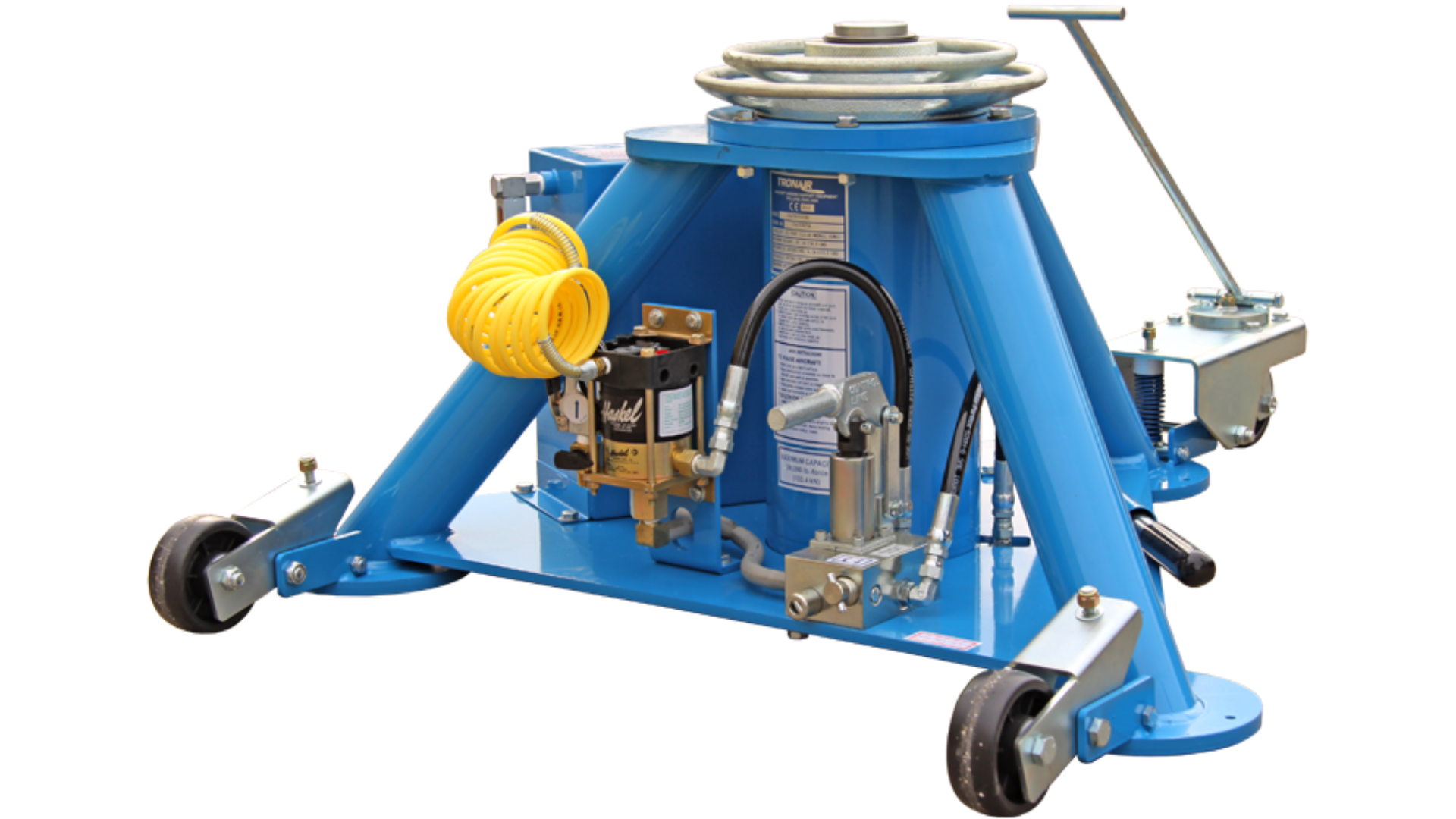

15 Ton Tripod Jack (CE)
02A7917C0100
SKU:Model02A7917C0100
Does this product fit your model?
View Aircraft Applications
Available to Order
Separate Adaptor may be required for some aircraft models. View Adaptor
Standard Features:
TRONAIR
02A7917C0100
Specifications
Dimensions
- Base Radius: 18
- Closed Height In (Cm): 20 (51)
- Extended Height In (Cm): 59 (149.9)
- Hydraulic Extension In (Cm) (Hydraulic Lift): 35 (89)
- Mechanical Extension In (Cm) (Extension Screw): 4 (10)
- Weight Lb (Kg): 390 (177)
Performance
- Capacity Tons: 15
Type/Other
- Hand Pump/Air Pump: Air Pump
- Single (S) Or Multi (M) Stage: M
Accessories and Spares
- K-1685 — Kit, Repair Fluid Seal (AS REQUIRED)
- K-1686 — Kit, Repair Air Seal (AS REQUIRED)
- K-3333 — KIT, BLOW GUN REPLACEMENT (AS REQUIRED)
- K-4685 — WRENCH, SPANNER (AS REQUIRED)
- K-4686 — WRENCH, SPANNER (AS REQUIRED)
- K-4687 — KIT, CYLINDER RAM SEAL (AS REQUIRED)
- K-1106 — Air Pump Manifold Kit (for use on tripod jacks with Air Pump) (Gulfstream - G280)
Aircraft Applications
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
