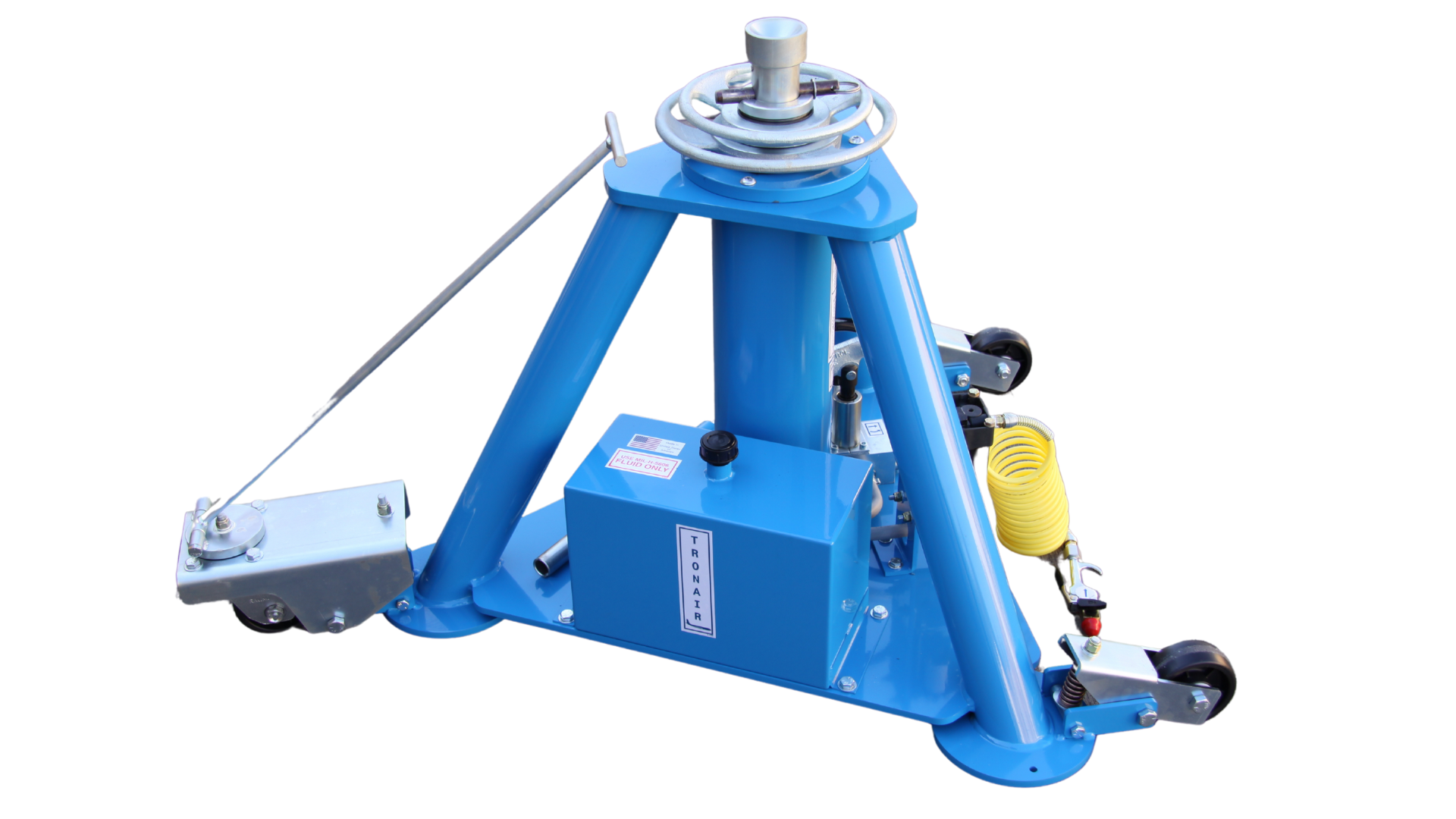

10 Ton Tripod Jack (CE)

Performance

• Capacity Tons: 10

Dimensions

• Closed Height In (Cm): 27.6 (70)
• Extended Height In (Cm): 72.5 (184.2)
• Hydraulic Extension In (Cm) (Hydraulic Lift): 33 (83.8)
• Mechanical Extension In (Cm) (Extension Screw): 12 (30)
• Weight Lb (Kg): 286 (130)

Type/Other

• Single (S) Or Multi (M) Stage: M

• HC-2000-337 — O-RING, SERIES 2 (AS REQUIRED)
• HC-2000-346 — O-RING, SERIES 2 (AS REQUIRED)
• HC-2020-337 — RING, BACK-UP (AS REQUIRED)
• HC-2020-346 — RING, BACK-UP (AS REQUIRED)
• K-1685 — Kit, Repair Fluid Seal (AS REQUIRED)
• K-1686 — Kit, Repair Air Seal (AS REQUIRED)
• Z-4973 — Superseded by K-3333 (AS REQUIRED)
• Z-5153 — ASSEMBLY, AIR PUMP (AS REQUIRED)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Textron (Cessna) - Citation 560 XLS)
• K-4557 — Medium Duty Springs (for jacks built before 2012) (Textron (Cessna) - Citation 560 XLS)
• R-1798 — Aircraft Adapter (Main) 2 required (Textron (Cessna) - Citation 560 XLS)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Textron (Cessna) - Citation 560 XL)
• K-4557 — Medium Duty Springs (for jacks built before 2012) (Textron (Cessna) - Citation 560 XL)
• R-1798 — Aircraft Adapter (Main) 2 required (Textron (Cessna) - Citation 560 XL)
• K-4557 — Medium Duty Springs (for jacks built before 2012) (Textron (Cessna) - Citation Sovereign 680)
• R-1807 — Main Adapter Pad R-1807 (Textron (Cessna) - Citation Sovereign 680)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Textron (Cessna) - Citation Latitude 680A)
• K-4557 — Medium Duty Springs (Textron (Cessna) - Citation Latitude 680A)
• R-1807 — Main Adapter Pad (Textron (Cessna) - Citation Latitude 680A)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Textron (Cessna) - Ascend)
• K-4557 — Medium Duty Springs (for jacks built before 2012) (Textron (Cessna) - Ascend)
• R-1798 — Aircraft Adapter (Main) 2 required (Textron (Cessna) - Ascend)

• Current Operation and Service Manual
  Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
