TRONAIR

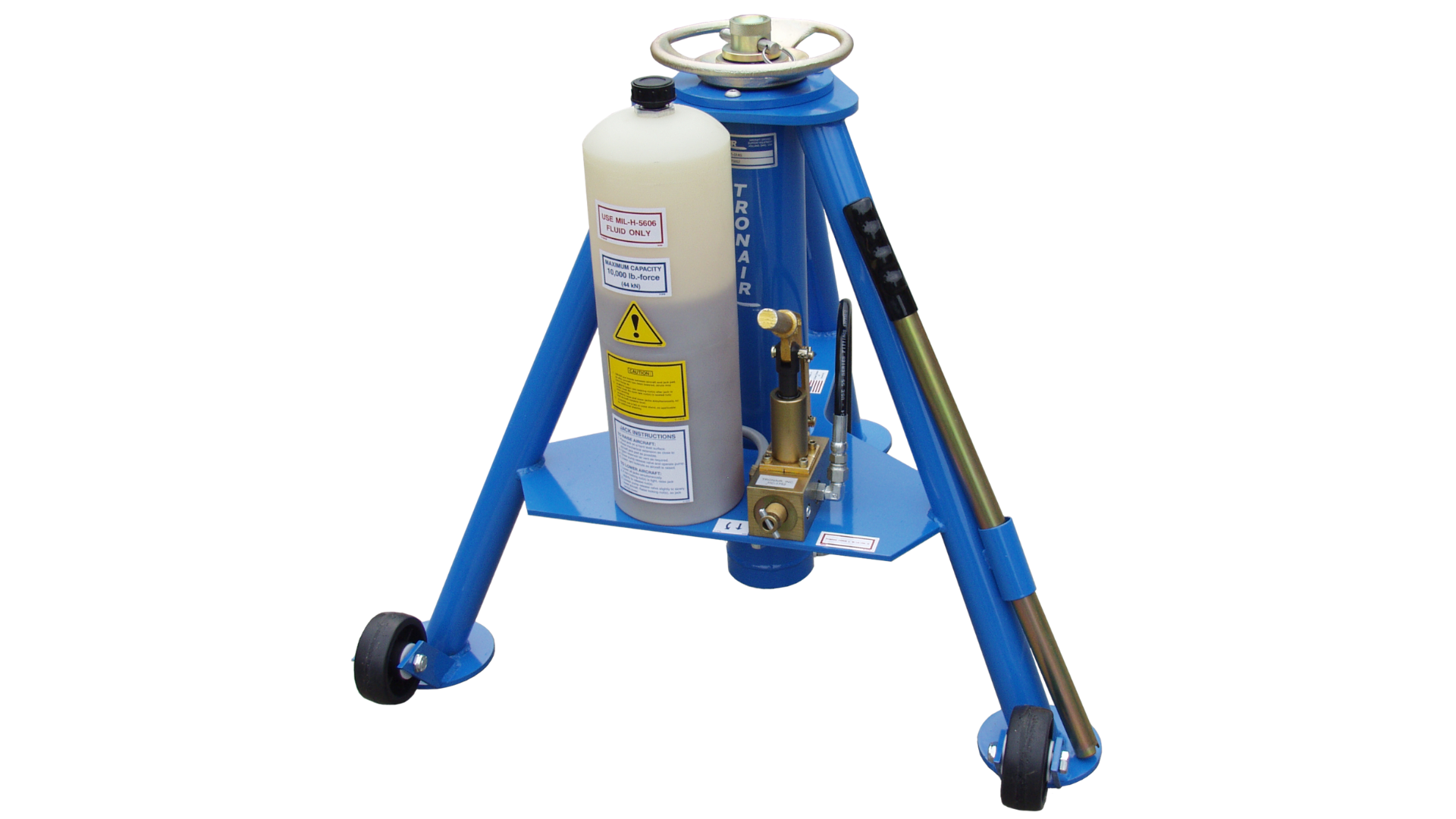

5 Ton Tripod Jack
02A0527C0140
SKU:Model02A0527C0140
Does this product fit your model?
View Aircraft Applications
Available to Order
Separate Adaptor may be required for some aircraft models. View Adaptor
5 Ton Tripod Jack
TRONAIR
02A0527C0140
Specifications
Accessories and Spares
Aircraft Applications
Resources
Specifications
Performance
- Capacity Tons: 5
Dimensions
- Closed Height In (Cm): 27.375 (69.5)
- Extended Height In (Cm): 70.8125 (179.9)
- Hydraulic Extension In (Cm) (Hydraulic Lift): 34 (87.5)
- Mechanical Extension In (Cm) (Extension Screw): 9 (22.9)
- Weight Lb (Kg): 177.5 (80.5)
Type/Other
- Single (S) Or Multi (M) Stage: M
Accessories and Spares
- K-1685 — Kit, Repair Fluid Seal (AS REQUIRED)
- K-1686 — Kit, Repair Air Seal (AS REQUIRED)
- K-3441 — Seal Kit (AS REQUIRED)
- K-4588 — Ram O-Ring Kit (AS REQUIRED)
- K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bombardier (Business) - Challenger 850)
- K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bombardier (Regional) - CRJ100)
- K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bombardier (Regional) - CRJ200)
- K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bombardier (Business) - CL-215)
- K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bombardier (Business) - CL-415)
- K-1106 — Air Pump Manifold Kit (for use on tripod jacks with Air Pump) (HondaJet - HA-420 HondaJet)
- K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Airbus Helicopter (Eurocopter) - HH-65A Dolphin)
- K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bombardier (Business) - CL-215T)
Aircraft Applications
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
