TRONAIR

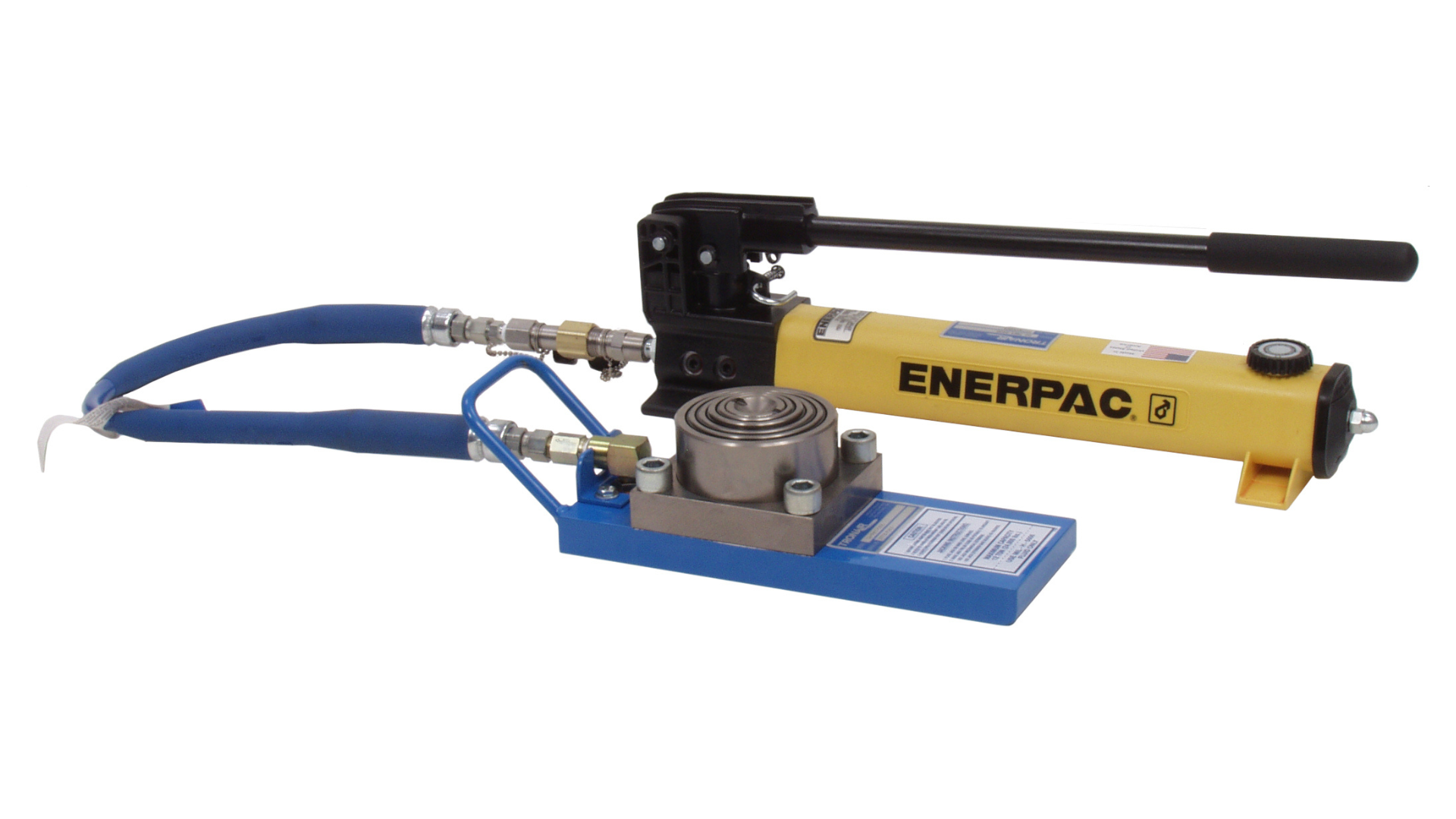

12 Ton Axle Jack (CE)
02-7861C0100-A1
SKU:Model02-7861C0100-A1
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- Hand pump with pressure relief valve
- Easy access filler/breather cap that can be sealed to avoid spills
- Spacer blocks provide easy adjustment of closed height (included with some models)
- Finish: Painted Blue
- Approved Aircraft Axle Jack - insert a "C" as the eighth digit, (e.g. 02-7813C0100)
TRONAIR
02-7861C0100-A1
Specifications
Performance
- Capacity Tons: 12
Dimensions
- Closed Height In (Cm): 4 (10)
- Extended Height In (Cm): 12.5 (32)
- Hydraulic Extension In (Cm) (Hydraulic Lift): 8 (20)
- Length In (Cm): 15.5 (39)
- Mechanical Extension In (Cm) (Extension Screw): 1 (3)
- Weight Lb (Kg): 52 (24)
- Width In (Cm): 4.5 (11)
Type/Other
- Hand Pump/Air Pump: Air Pump
