Standard Features
- Sturdy welded steel construction
- Fits tire rim diameters 8 to 20 in (20 to 51 cm) with breaker rings (sold separately)
- Telescoping legs to adjust for tire widths
- Accommodates locking ring type wheel
- Three padded sliding bottom breaker pads to protect against rim damage
- These beadbreakers are not functional without breaker ring
- Finish: Durable Powder Coat Tronair Blue
- It is recommended to order 14B6801-0120 for rims 17 in (43 cm) or larger
Optional Features
- K-3721 - 8,000 PSI (552 BAR) AIR PUMP FIELD INSTALLATION KIT
Aircraft Applications: -
Standard Features
- Sturdy welded steel construction
- Fits tire rim diameters 8 to 20 in (20 to 51 cm) with breaker rings (sold separately)
- Telescoping legs to adjust for tire widths
- Accommodates locking ring type wheel
- Three padded sliding bottom breaker pads to protect against rim damage
- These beadbreakers are not functional without breaker ring
- Finish: Durable Powder Coat Tronair Blue
Optional Features
- K-2540 - 4,500 PSI (310 BAR) AIR PUMP FIELD INSTALLATION KIT
Aircraft Applications: -

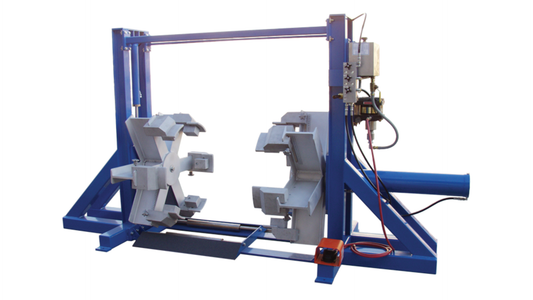

Standard Features
- 12 ton (10,886 kg) hydraulic cylinder driven by an 80 to 120 psi (5.5 to 8.3 bar) pneumatic pump
- Rugged welded steel construction with aluminum breaker spindle
- Pneumatic pump, single control panel, ramp, and mechanical vertical and horizontal travel (OSHA Act 1970 Section 5(a) (1) - General Duty Clause and EU-OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Single control panel allows for both vertical and horizontal travel with a foot pedal control valve
- 10 adjustable breaker pad settings eliminate the need for ring adapters
- Entry ramp and sliding rail make loading and positioning easier
- Horizontal mechanical extension from the cylinder for final width adjustment
- Adjustable to rim sizes 12 to 28 in (30.5 to 71 cm)
- Approved for use on radial tires
- Hydraulic force 12 ton (10,886 kg)
- 80 to 120 psi (5.5 to 8.3 bar) shop air requirements
- MIL-PRF-5606 hydraulic fluid
- CE marked
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Standard Features
- Sturdy welded steel construction
- Fits tire rim diameters 8 to 20 in (20 to 51 cm) with breaker rings (sold separately)
- Telescoping legs to adjust for tire widths
- Accommodates locking ring type wheel
- Three padded sliding bottom breaker pads to protect against rim damage
- These beadbreakers are not functional without breaker ring
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
-
-
