TRONAIR

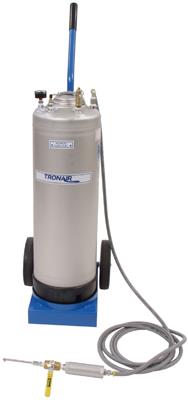

Engine Oil Service Cart (6 gal/28 l) (CE)
06-5010-6500
SKU:Model06-5010-6500
National Stocking Number: 4930-01-492-6898
Does this product fit your model?
View Aircraft Applications
Available to Order
Standard Features
- ASME certified stainless steel reservoir
- 06-5009-Series, 06-5077-6700: 2.5 gal (9.5 l)
- 06-5010-Series: 6 gal (28 l)
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 100 psi (6.9 bar) certified pressure gauge
- 85 psi (5.9 bar) maximum pressure
- 125 psi (8.6 bar) safety pop off valve
- 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector, shut off valve and filler tube
- 8 in (20 cm) semi-pneumatic tires - Model 06-5010 only
TRONAIR
06-5010-6500
Specifications
Aircraft Applications
Resources
Specifications
Fluids
- Fluid: MIL-PRF-5606 / MIL-PRF-83282
Dimensions
- Height In (Cm): 44 (112)
- Length In (Cm): 17 (43)
- Weight Lb (Kg): 44 (20)
- Width In (Cm): 14 (36)
Aircraft Applications
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
