MALABAR

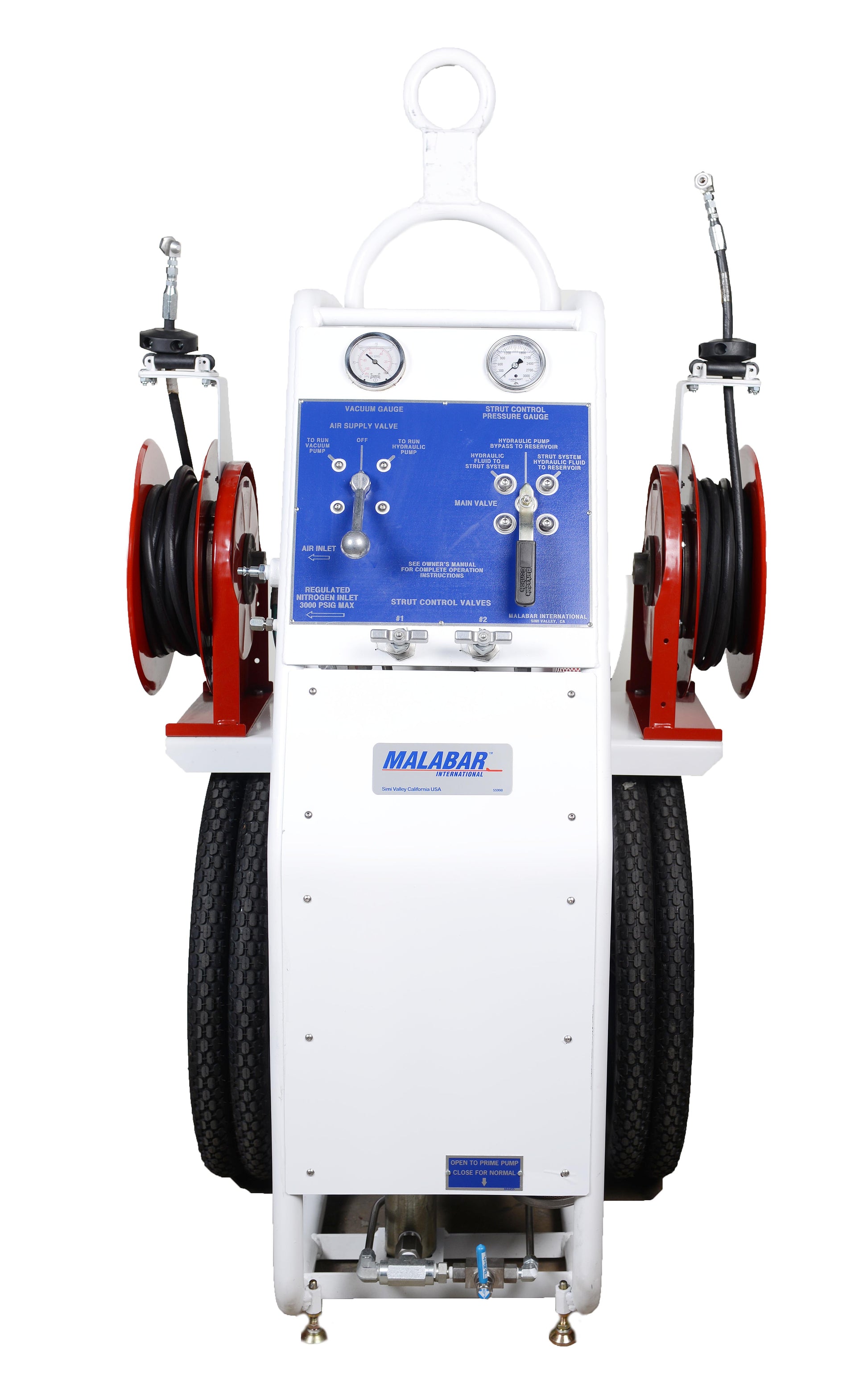

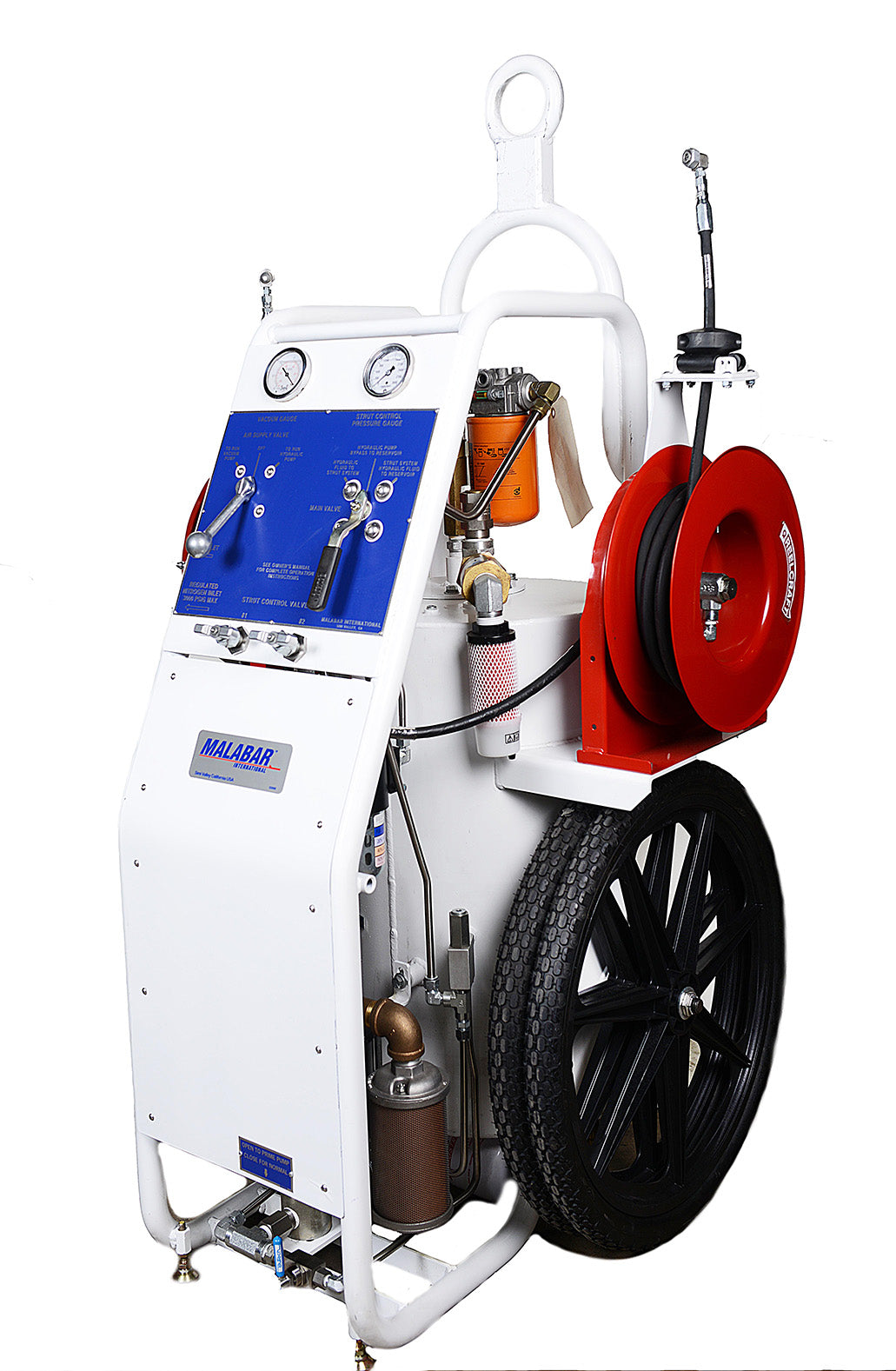

8844B Strut Service Cart

884400B-3

Model884400B-3

Servicing (ata-12)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Inquire Used
View full details

Standard Features

  • Towable unit with rugged tubular frame and integrated fluid reservoir
  • Polyurethane filled tires and 3 inch ID lunette ring
  • Conveniently located operator panel for easy strut servicing
  • Baffled dual reservoir for separate clean and waste fluid storage, including fluid sights, fill cap, desiccant breather, strut vent system, drain valve and cleanout cover
  • Air operated hydraulic pump and vacuum degassing system
  • Inlet connections for external regulated nitrogen and shop air
  • Suction and return filtration
  • Analog vacuum and pressure gauges
  • Two 25 foot service hoses with strut safety chucks mounted on hose racks
  • Skydrol resistant paint (white)
  • 1 year standard warranty
  • Shipment on domestic skid with protective cover
  • Customer supplied adapters

Optional Features

  • Two retractable hose reels with 25 foot long service hoses
  • Return fluid sight
  • Customer specified paint color

Variants

  • 884400B-1 - None
  • 884400B-2 - Hose reels
  • Currently Viewing 884400B-3 - FLUID SIGHT, HOSE REELS,37° FLARED N2 INLET FITTING
MALABAR

884400B-3

Request a Quote
Inquire Used

Specifications

Performance

  • Air Inlet (Psi): 90-110
  • Clean Reservoir Capacity (Gal): 8.5
  • Maximum Towing Speed (Mph): 20
  • Waste Reservoir Capacity (Gal): 7

Fluids

  • Fluid Delivery Rate (Gpm): 2
  • Hydraulic Fluid: MIL-PRF-5606 or equivalent

Filtration

  • Suction Fluid Filter: 10 micron nominal

Dimensions

  • Weight Lb (Kg): 265 (120)
