MALABAR

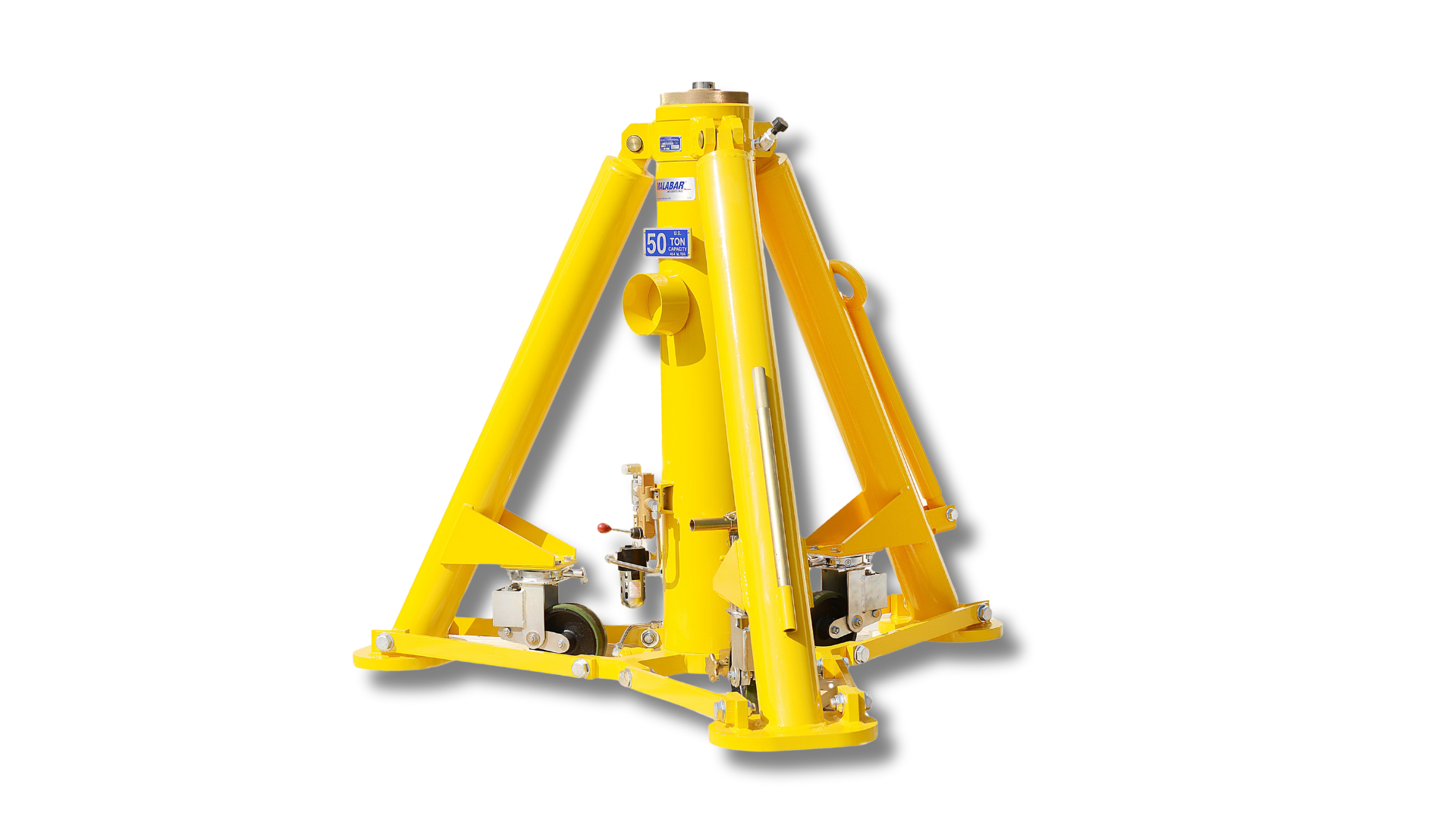

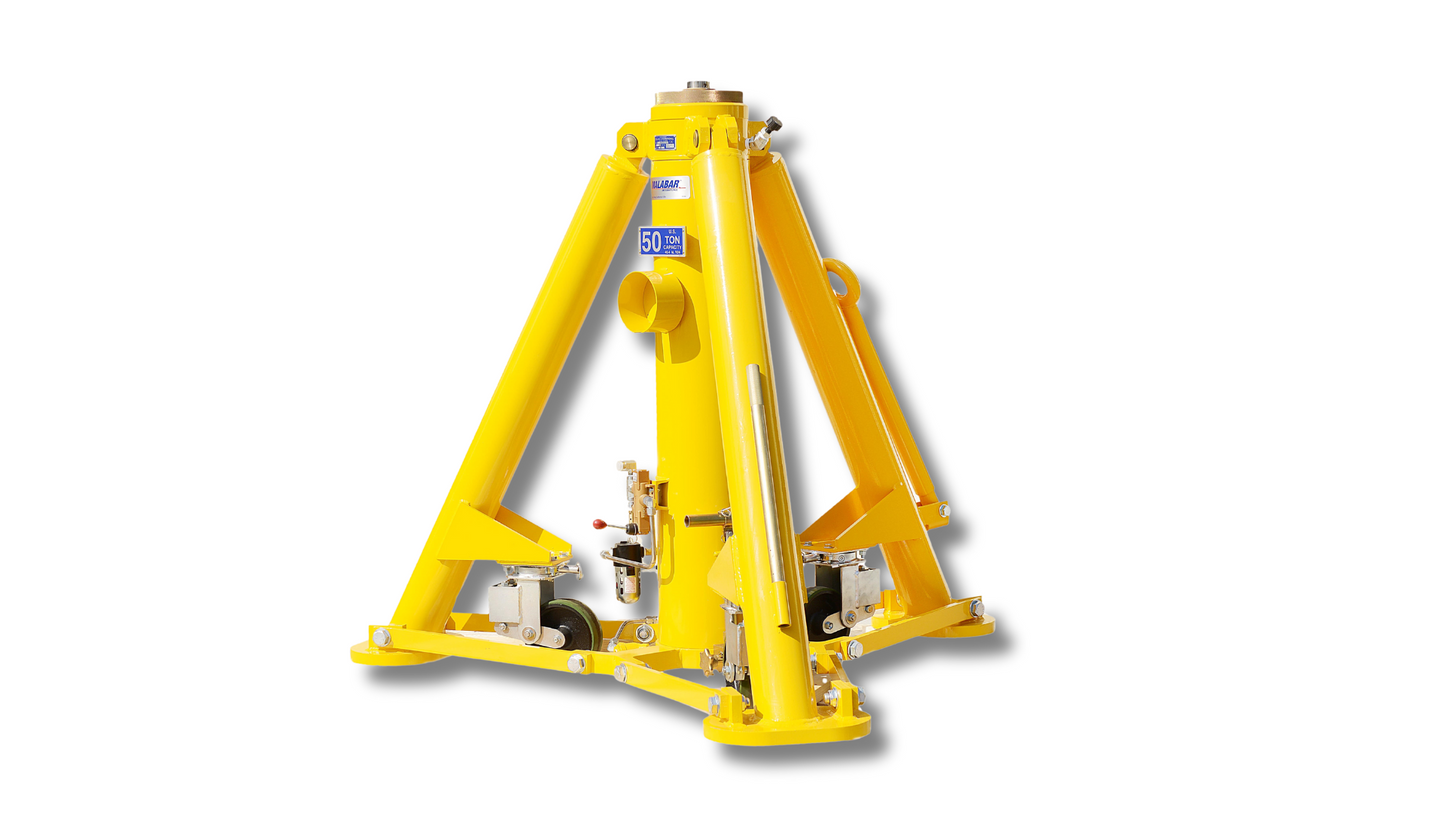

759A Tripod Jack (50 Ton)

75900A-2

Model75900A-2

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

Manual hand pump with high, medium and low pressure operating positions
Heavy duty tow handle and swivel casters with swivel locks for improved towing
Hydraulic "thermal" relief valve for added protection and safety in the event of internal fluid expansion due to temperature
Secondary cylinder seal for protection against contaminants and to prolong life of primary seal
Rain hat (covers jack upper head)
Hard chrome plated cylinder bore
All unpainted parts are plated to resist corrosion
Skydrol resistant paint (safety yellow)
Factory proof load @ 150% of rated capacity
3 year standard warranty
Shipment on domestic skid

MALABAR

75900A-2

Request a Quote

Specifications

Dimensions

  • Base Radius: 38.625
  • Closed Height In (Cm): 60 (152)
  • Extended Height In (Cm): 120 (305)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 44 (112)
  • Mechanical Extension In (Cm) (Extension Screw): 16 (41)
  • Weight Lb (Kg): 1700 (771)

Performance

  • Capacity Tons: 50

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: S
