MALABAR

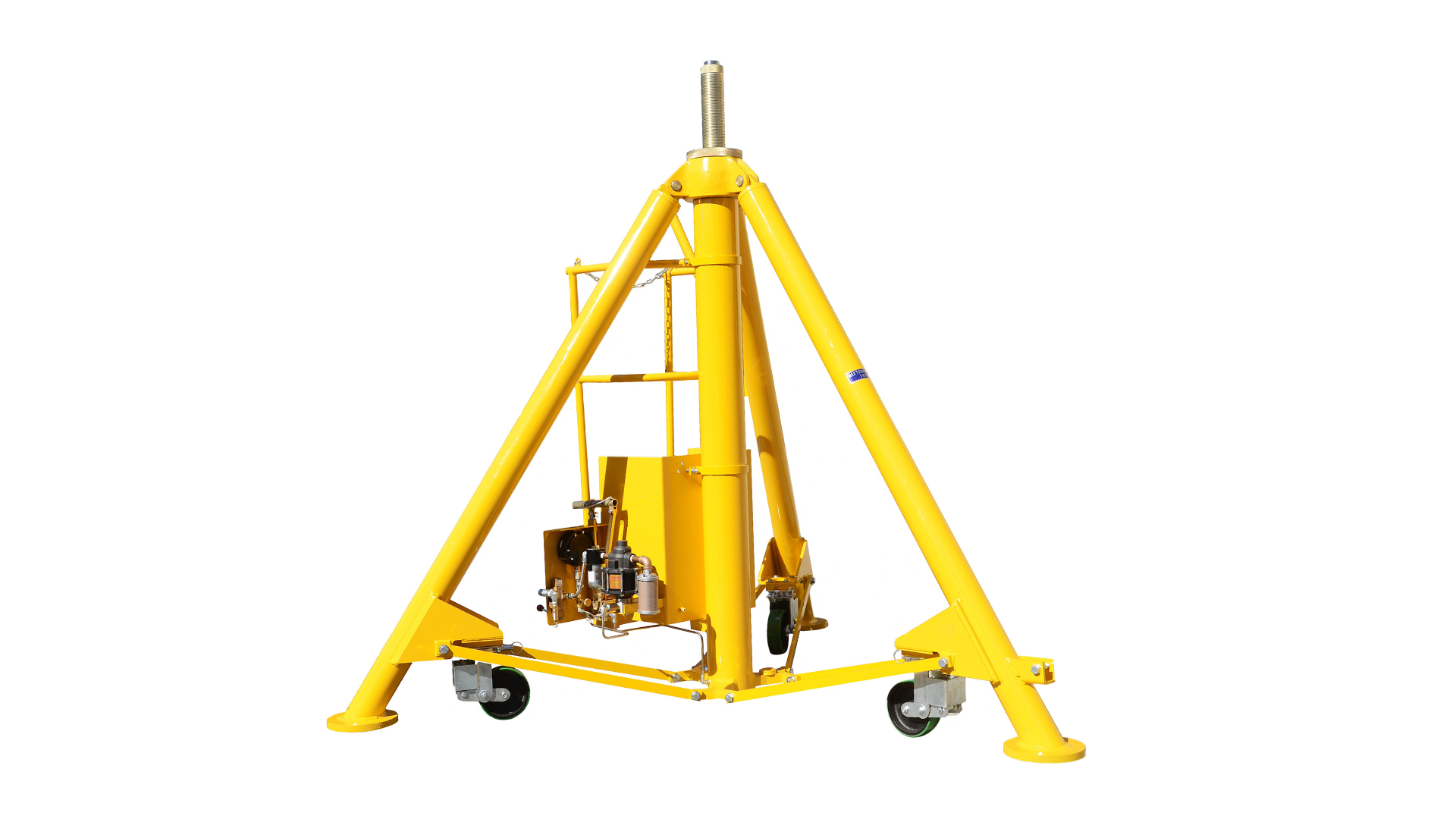

733A Tripod Jack (40 Ton)

73300A-10

Model73300A-10

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty tow handle and swivel casters with swivel locks for improved towing
  • Hydraulic "thermal" relief valve for added protection and safety in the event of internal fluid expansion due to temperature
  • Secondary cylinder seal for protection against contaminants and to prolong life of primary seal
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Adjustable swivel feet with level for leveling jack
  • Hydraulic operated casters provide ease in jack leveling and increased ground clearance for towing
  • Platform mounted operating controls allow one person to position locknut while controlling lifting and lowering operations
  • Ladder/platform
  • 1-1/4 inch spherical radius male ship adapter
  • Extended 3/4 inch spherical radius female ship adapter

Variants

  • Currently Viewing 73300A-10 - AIR PUMP, GAUGE, LADDER, 1-1/4 SPHERICAL RADIUS MALE SHIP ADAPTER (873120)
  • 73300A-11 - AIR PUMP, GAUGE, LADDER
MALABAR

73300A-10

Request a Quote

Specifications

Aircraft Applications

Resources

Specifications

Dimensions

  • Base Radius: 31
  • Closed Height In (Cm): 87 (221)
  • Extended Height In (Cm): 185 (470)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 72 (182.9)
  • Mechanical Extension In (Cm) (Extension Screw): 26 (66)
  • Weight Lb (Kg): 1700 (771)

Performance

  • Capacity Tons: 40

Type/Other

  • Hand Pump/Air Pump: Air Pump
  • Single (S) Or Multi (M) Stage: S
