MALABAR

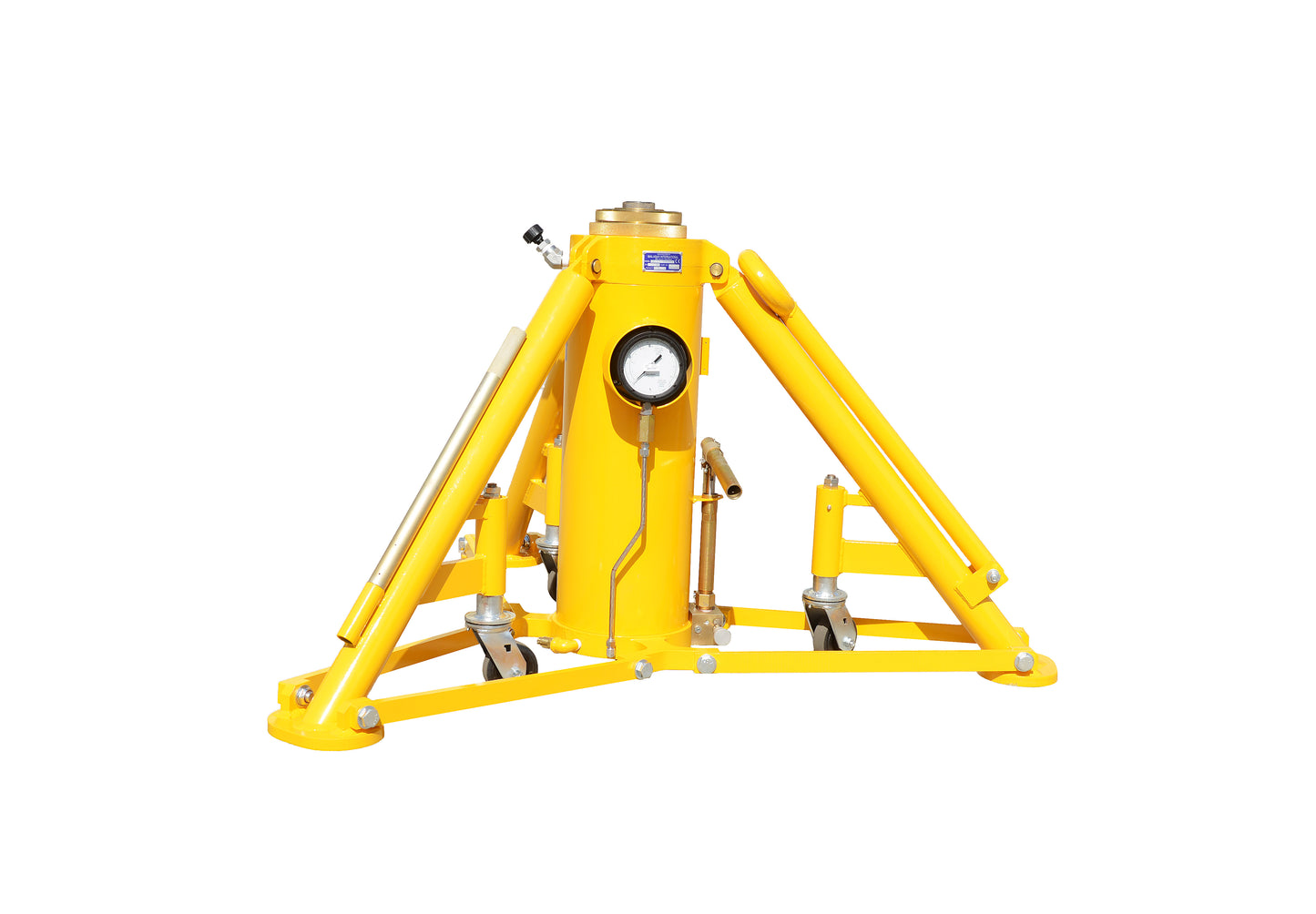

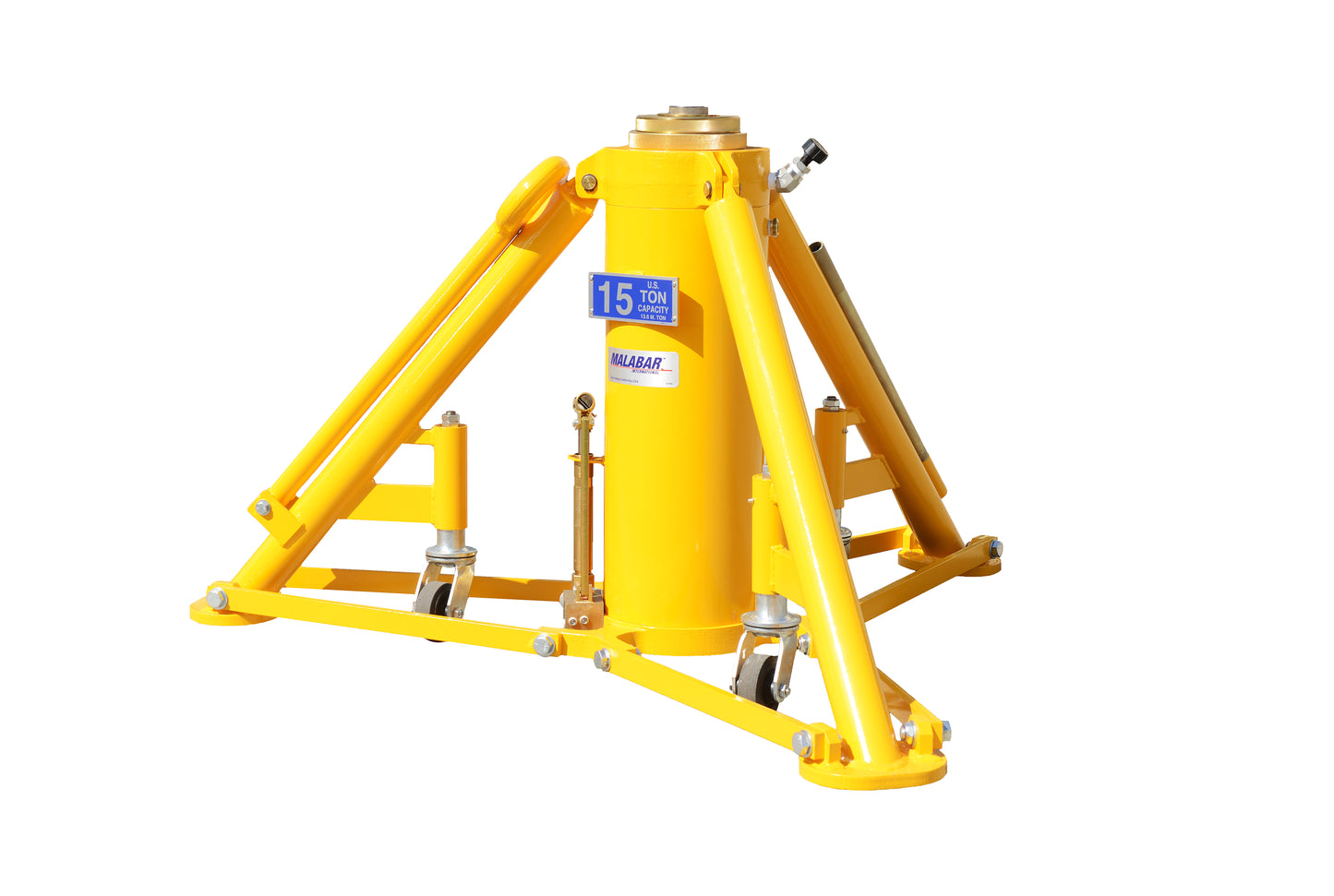

7215B Tripod Jack (15 Ton)

721500B-1

Model721500B-1

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump
  • Heavy duty swivel casters
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psig)
  • Customer specified paint color
  • Export crating

Variants

  • Currently Viewing 721500B-1 - NONE
  • 721500B-3 - Air Pump, Gauge, Tow Handle
  • 721500B-7 - Tow Handle
MALABAR

721500B-1

Request a Quote

Specifications

Dimensions

  • Base Radius: 16.9
  • Closed Height In (Cm): 34.75 (88)
  • Extended Height In (Cm): 100.75 (256)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 50 (127)
  • Mechanical Extension In (Cm) (Extension Screw): 16 (40.6)
  • Weight Lb (Kg): 700 (318)

Performance

  • Capacity Tons: 15

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: M

Resources
