TRONAIR

380/415/440 input voltage/50 Hz frequency

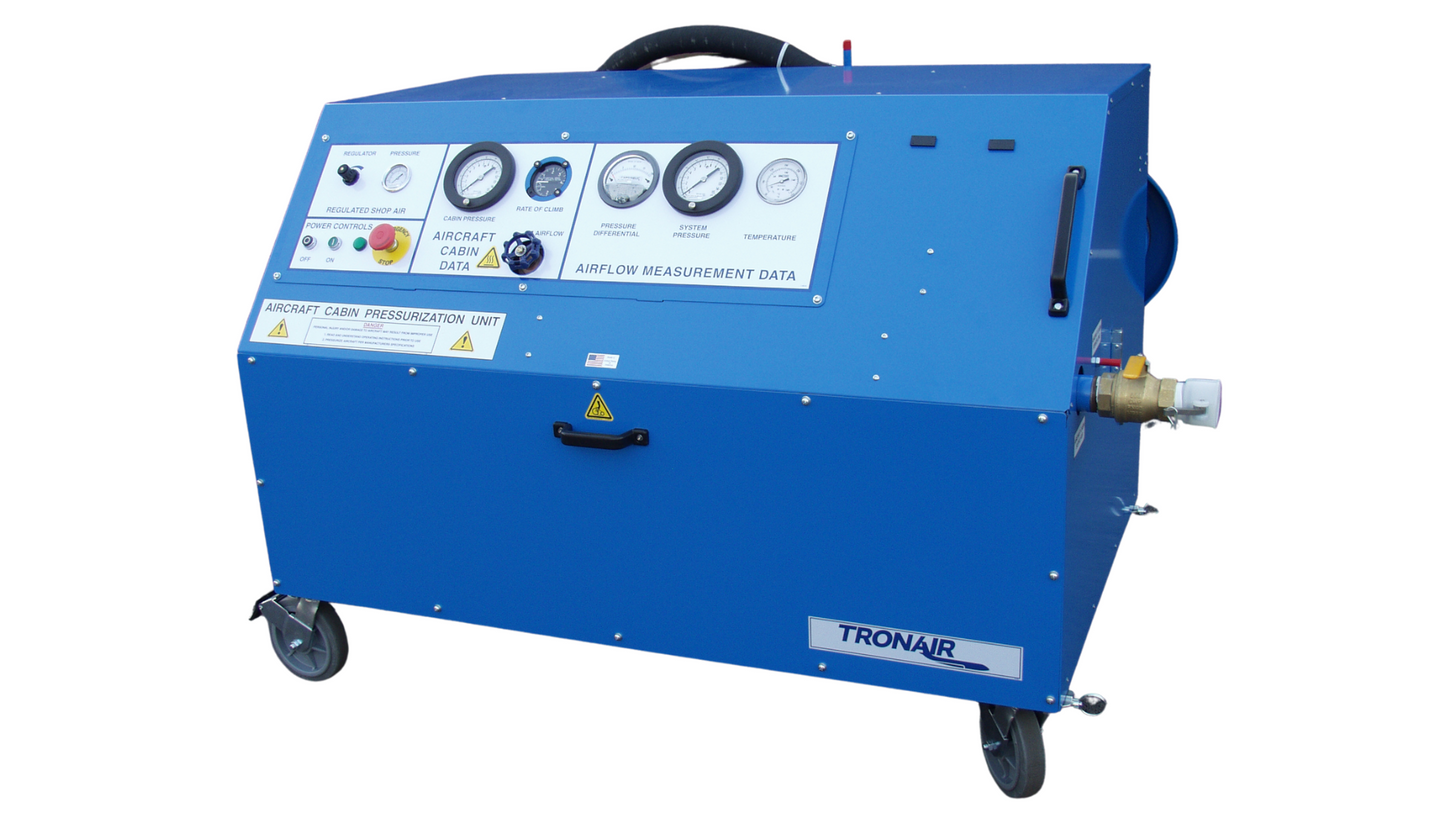

15F7610-6000

Model15F7610-6000

Cabin pressure testing (ata-21)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

50 ft (15.2 m) input power cable (plug not included)
25 ft (7.6 m) 2 in (5 cm) supply hose
30 ft (9.1 m) #4 cabin sense line
30 ft (9.1 m) #4 door seal line
3 phase, heavy duty 40 hp motor
Heavy duty start with solid state overload protection
High output belt driven blower
High efficiency industrial blower silencers
Murphy MPC20 Digital Controller/Display
Electronic potentiometer controlled flow
35-350 scfm (26.3 lbs/min) flow capacity with 2% accuracy reading
0-13.5 psig at aircraft capability with .25% accuracy pressure reading
Certified door seal pressure gauge 0-60 psi (0-4 bar)
Quiet 77.6 dBA at 3 ft (1 m)
Heat exchanger for controlled air delivery temperature, 100-140º F (38-60º C)
Air inlet filter
Maximum cabin pressure and rate of climb settable warnings
Hard rubber casters
Finish: Durable Powder Coat Tronair Blue

TRONAIR

15F7610-6000

Request a Quote

Specifications

Electrical

  • Electrical V/Hz/Ph: 380/415/440/50/3

Performance

  • Flow Range Scfm: 35-350
  • Rate Of Climb Indicator Ft/Min (Cm/Sec): 0-6,000 (0-3,048)

Dimensions

  • Height In (Cm): 71 (180)
  • Length In (Cm): 83.5 (212)
  • Weight Lb (Kg): 2,000 (907)
  • Width In (Cm): 75.5 (192)
