TRONAIR

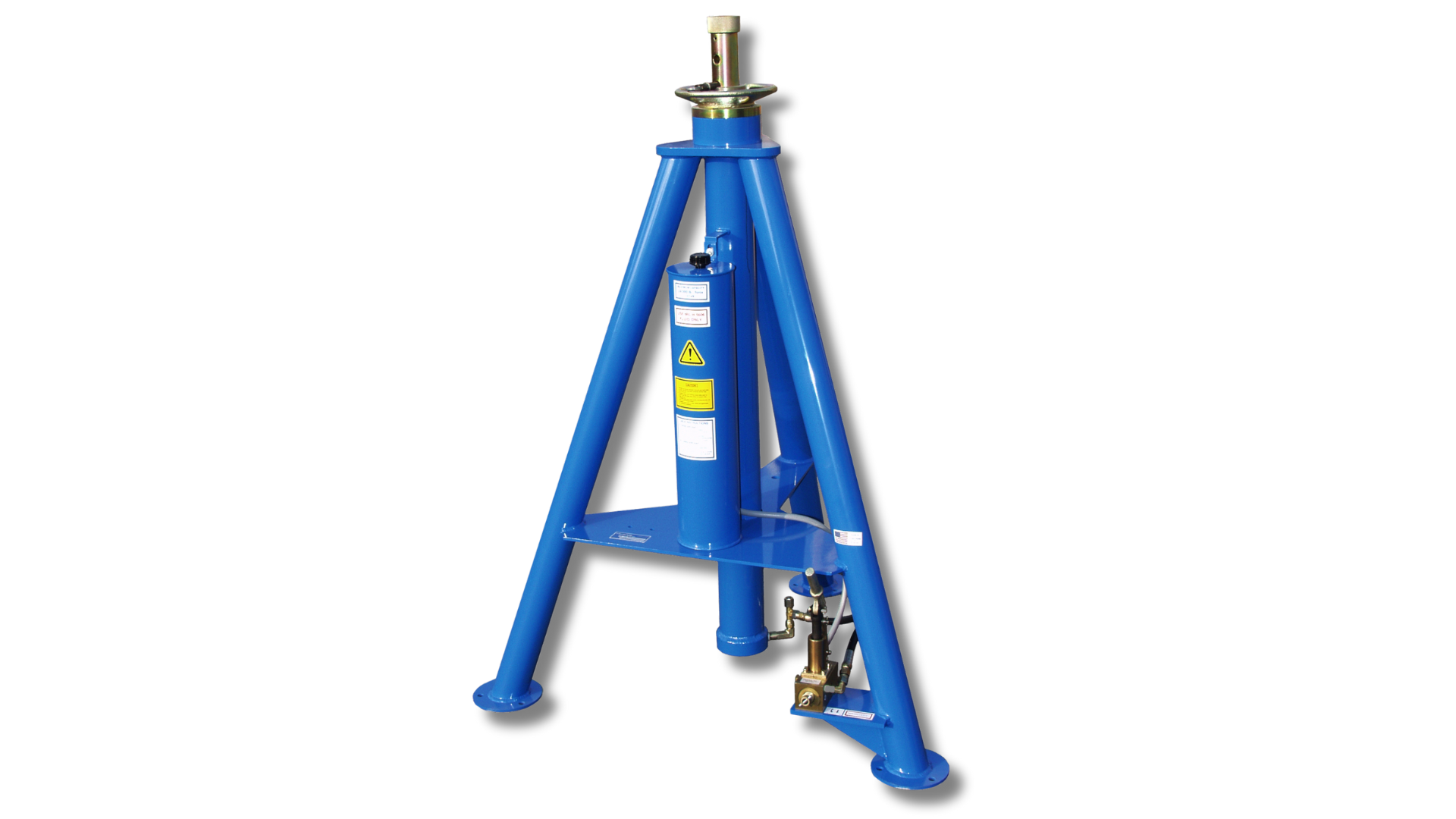

12 Ton Tripod Jack (CE)

02-7802C0111

Model02-7802C0111

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features

  • Hand Pump with built-in pressure relief valve
  • Threaded rams with improved hand wheel style safety nut
  • Quick rising center extension
  • Easy access filler/breather cap
  • Heavy-duty wheels on all aircraft tripod jacks where spring loaded casters are not standard
  • Hydraulic fluid: MIL-PRF-5606
  • 3/4 in (2 cm) spherical radius cup jack pad
  • Finish: Durable Powder Coat Tronair Blue
  • Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)

Optional Features

  • Air Pump (field installed) - call Tronair
  • Air Pump (factory installed) - insert an "A" as the third digit of the model number (e.g. 02A0522-0140)
  • Air Pump and Spring Loaded Casters (factory installed) - insert a "B" as the third digit of the model number (e.g. 02B0517-0140)
  • Spring Loaded Casters (factory installed) - insert a "C" as the third digit of the model number (e.g. 02C7856C0100); not standard on 5 ton jacks

Variants

TRONAIR

02-7802C0111

Request a Quote

Specifications

Accessories and Spares

Aircraft Applications

Resources

Specifications

Dimensions

  • Base Radius: 41.02
  • Closed Height In (Cm): 108 (274)
  • Extended Height In (Cm): 154 (391)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 32.25 (81.92)
  • Mechanical Extension In (Cm) (Extension Screw): 14 (36)
  • Weight Lb (Kg): 500 (227)

Performance

  • Capacity Tons: 12

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: S
