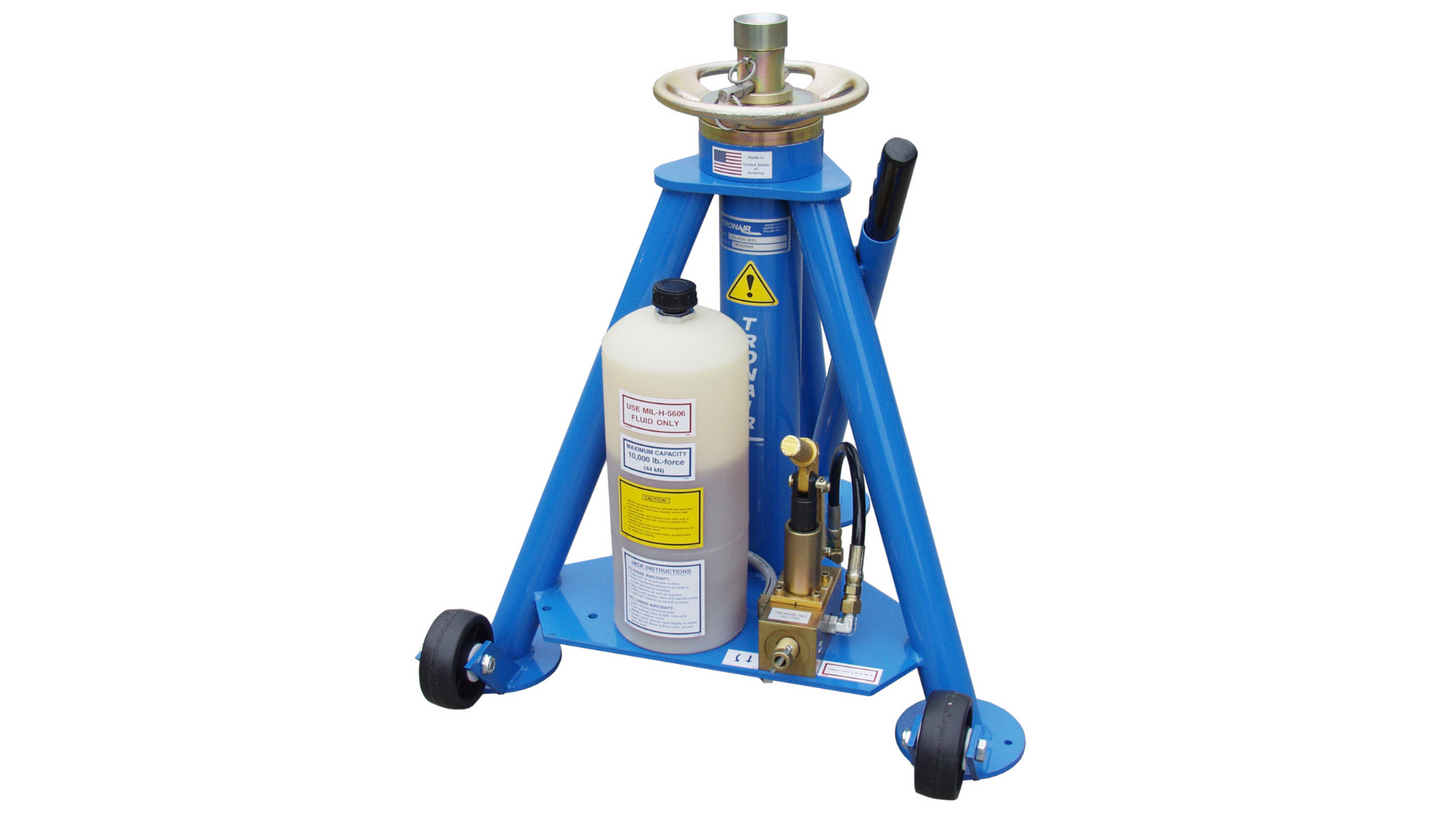

Tripod Jack (5 ton) (CE)

Name: 02-0526C0110
Brand: TRONAIR
SKU: 02-0526C0110
Price: 3678.0 USD
Availability: InStock

02-0526C0110

SKU:Model02-0526C0110

National Stocking Number: 1730-01-641-4126

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications

Available to Order

Request a Quote

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

Hand Pump with built-in pressure relief valve
Threaded rams with improved hand wheel style safety nut
Quick rising center extension
Easy access filler/breather cap
Heavy-duty wheels on all aircraft tripod jacks where spring loaded casters are not standard
Hydraulic fluid: MIL-PRF-5606
3/4 in (2 cm) spherical radius cup jack pad
Finish: Durable Powder Coat Tronair Blue
Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)

Specifications

Dimensions

Base Radius: 11.19
Closed Height In (Cm): 26 (66)
Extended Height In (Cm): 50 (127)
Hydraulic Extension In (Cm) (Hydraulic Lift): 16 (41)
Mechanical Extension In (Cm) (Extension Screw): 8 (20)
Weight Lb (Kg): 84 (38)

Performance

Capacity Tons: 5

Type/Other

Hand Pump/Air Pump: Hand Pump
Single (S) Or Multi (M) Stage: S

Accessories and Spares

K-1049 — Kit, Ram Seal (AS REQUIRED)
K-3441 — Seal Kit (AS REQUIRED)
HJ-514 — Replacement Knurled safety nut (for clearance purposes) 2 required (Airbus Helicopter (Eurocopter) - AS365N Dauphin)
HJ-557 — 3 Adapters (Not required on Serial Number RK-144 and after) (Beechcraft - Beechjet 400A)
R-1798 — Aircraft Adapter (Main) 2 required (Textron (Cessna) - Citation Ultra 560)
R-1798 — Aircraft Adapter (Main) 2 required (Textron (Cessna) - Citation Encore 560)
HJ-557 — 3 Adapters (Not required on Serial Number RK-144 and after) (Beechcraft - Diamond)
HJ-514 — Knurled safety nut to prevent interference with gear doors (Airbus Helicopter (Eurocopter) - HH-65A Dolphin)

Replacement Parts

Airbus Helicopter (Eurocopter) - AS365N Dauphin
- HJ-514 - Replacement Knurled safety nut (for clearance purposes) 2 required
Beechcraft - Beechjet 400A
- HJ-557 - 3 Adapters (Not required on Serial Number RK-144 and after)
Textron (Cessna) - Citation Ultra 560
- R-1798 - Aircraft Adapter (Main) 2 required
Textron (Cessna) - Citation Encore 560
- R-1798 - Aircraft Adapter (Main) 2 required
Beechcraft - Diamond
- HJ-557 - 3 Adapters (Not required on Serial Number RK-144 and after)
Airbus Helicopter (Eurocopter) - HH-65A Dolphin
- HJ-514 - Knurled safety nut to prevent interference with gear doors
