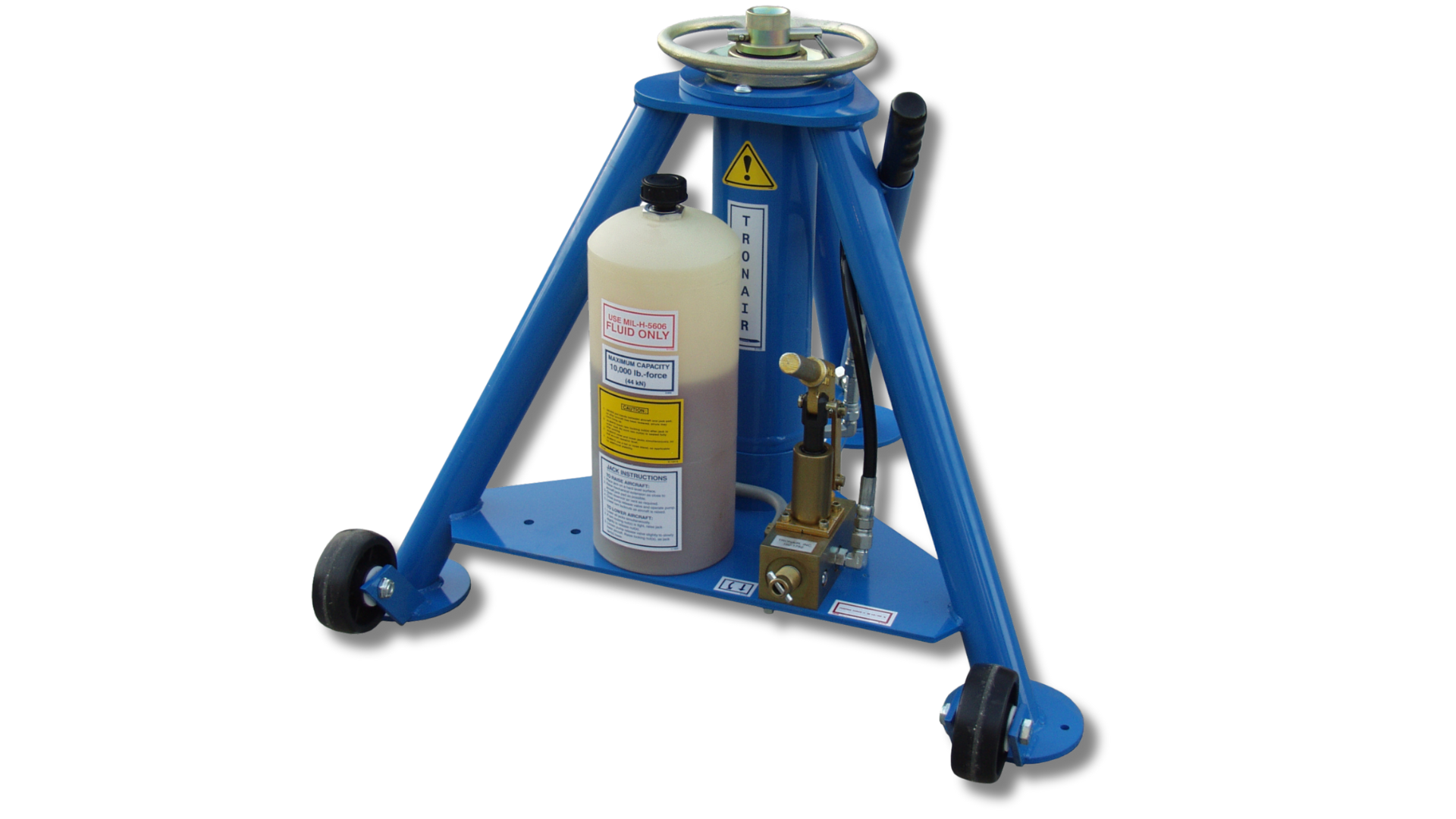

Forward Jack (5 ton/4.5 metric ton) (High Skid Gear) (CE)

Name: 02-0522C0141
Brand: TRONAIR
SKU: 02-0522C0141
Price: 100000.0 USD
Availability: InStock

02-0522C0141

SKU:Model02-0522C0141

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications

In Stock & Ready to Ship

Shipping within 2-3 business days

Request a Quote

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

Hand Pump with built-in pressure relief valve
Threaded rams with improved hand wheel style safety nut
Quick rising center extension
Easy access filler/breather cap
Heavy-duty wheels on all aircraft tripod jacks where spring loaded casters are not standard
Hydraulic fluid: MIL-PRF-5606
3/4 in (2 cm) spherical radius cup jack pad
Finish: Durable Powder Coat Tronair Blue
Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)

Specifications

Dimensions

Base Radius: 14.125
Closed Height In (Cm): 22 (56)
Extended Height In (Cm): 51 (130)
Hydraulic Extension In (Cm) (Hydraulic Lift): 22 (56)
Mechanical Extension In (Cm) (Extension Screw): 7 (18)
Weight Lb (Kg): 113 (51)

Performance

Capacity Tons: 5

Type/Other

Hand Pump/Air Pump: Hand Pump
Single (S) Or Multi (M) Stage: M

Accessories and Spares

K-3441 — Seal Kit (AS REQUIRED)
K-4588 — Ram O-Ring Kit (AS REQUIRED)
TR-1310 — LockNut - First Stage (2) (Fairchild Dornier - Dornier 228-100/200)
R-1117 — Jack Pad 1 required (Bombardier (Regional) - Dash 8-100)
R-1117 — Jack Pad 1 required (Bombardier (Regional) - Dash 8-200)
R-1117 — Jack Pad 1 required (Bombardier (Regional) - Dash 8-300)

Replacement Parts

Fairchild Dornier - Dornier 228-100/200
- TR-1310 - LockNut - First Stage (2)
Bombardier (Regional) - Dash 8-100
- R-1117 - Jack Pad 1 required
Bombardier (Regional) - Dash 8-200
- R-1117 - Jack Pad 1 required
Bombardier (Regional) - Dash 8-300
- R-1117 - Jack Pad 1 required
