Showing 73 - 84 of 106
-
-
Standard Features

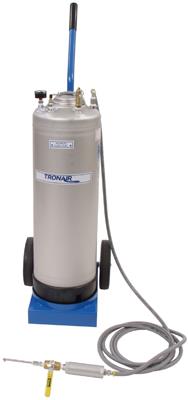

- ASME certified stainless steel reservoir
- 06-5009-Series, 06-5077-6700: 2.5 gal (9.5 l)
- 06-5010-Series: 6 gal (28 l)
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 100 psi (6.9 bar) certified pressure gauge
- 85 psi (5.9 bar) maximum pressure
- 125 psi (8.6 bar) safety pop off valve
- 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector, shut off valve and filler tube
- 8 in (20 cm) semi-pneumatic tires - Model 06-5010 only
Aircraft Applications: -
Standard Features
- ASME certified stainless steel reservoir
- 06-5009-Series, 06-5077-6700: 2.5 gal (9.5 l)
- 06-5010-Series: 6 gal (28 l)
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 100 psi (6.9 bar) certified pressure gauge
- 85 psi (5.9 bar) maximum pressure
- 125 psi (8.6 bar) safety pop off valve
- 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector, shut off valve and filler tube
- 8 in (20 cm) semi-pneumatic tires - Model 06-5010 only
Aircraft Applications: -
Standard Features
- 2 gal (7.6 l) reservoir
- 2 in (5 cm) filler port
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 200 psi (13.8 bar) maximum pressure
- 8 in (20.3 cm) sight glass
- Bulkhead plate for installation of size #12 bulkhead quick disconnect coupling half (coupling not included)
- High displacement hand pump (13 stokes per quart)
- Hose storage bracket
- Sealed fill cap with pressure relief and vacuum breaker valves
- Servicing of MIL-PRF-23699 or MIL-PRF-87257 hydraulic reservoir fluid
- Stainless steel construction
Aircraft Applications: -
-
Standard Features
- ASME certified stainless steel reservoir
- 06-5009-Series, 06-5077-6700: 2.5 gal (9.5 l)
- 06-5010-Series: 6 gal (28 l)
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 100 psi (6.9 bar) certified pressure gauge
- 85 psi (5.9 bar) maximum pressure
- 125 psi (8.6 bar) safety pop off valve
- 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector, shut off valve and filler tube
- 8 in (20 cm) semi-pneumatic tires - Model 06-5010 only
Aircraft Applications: -
Looking For Custom Parts?
Contact Us -
Standard Features
- ASME certified stainless steel reservoir
- 06-5009-Series, 06-5077-6700: 2.5 gal (9.5 l)
- 06-5010-Series: 6 gal (28 l)
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 100 psi (6.9 bar) certified pressure gauge
- 85 psi (5.9 bar) maximum pressure
- 125 psi (8.6 bar) safety pop off valve
- 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector, shut off valve and filler tube
- 8 in (20 cm) semi-pneumatic tires - Model 06-5010 only
Aircraft Applications: -
-
-
-
Standard Features
- Anodized aluminum housing
- #6 SAE female ports
- EPR or Vitron seals
- 2 micron absolute rating per ISO 4572
- Beta rating > 1000 at 4 micron
- Dirt capacity of 1.38 grams at < 50 psig
- 150 psi (10 bar) collapse rating
- 3,000 psi (207 bar) maximum pressure rating
- Length: 4.75 in (12 cm)
- Diameter: 1.5 in (3.8 cm)
- Dry Weight: 1 lb (.5 kg)
Aircraft Applications: -
Standard Features
- Anodized aluminum housing
- #6 SAE female ports
- EPR or Vitron seals
- 2 micron absolute rating per ISO 4572
- Beta rating > 1000 at 4 micron
- Dirt capacity of 1.38 grams at < 50 psig
- 150 psi (10 bar) collapse rating
- 3,000 psi (207 bar) maximum pressure rating
- Length: 4.75 in (12 cm)
- Diameter: 1.5 in (3.8 cm)
- Dry Weight: 1 lb (.5 kg)
Aircraft Applications:
