Showing 49 - 60 of 69
-
Standard Features
- Fully automatic operation
- Solid state circuirty and state-of-the-art components
- Automatic battery temperature sensing
- Battery over temperature protection circuit
- Services from 1 to 50 cells simultaneously
- Capable of discharging two batteries (limited to 20 amps)
- Adjustable current flow from 0 - 50 amps
- Input voltages 208/230 AC 50 or 60 Hz
Aircraft Applications: -
Standard Features
- Powered by the award winning Doosan Tier 4f electronic engine with full-authority electronic controls for more precise control over the performance of the engine
- Extended service intervals using extended service filters and lubricants, up to 500 hours between scheduled service
- Engine operates with Ultra-low Sulphur Diesel fuel
- Fuel/water separator with water-in-fuel sensor and electronic indication
- Large 35 gallon, high density cross-linked polyethylene fuel tank for 26 + hours of use
- Low fuel warning and no fuel shutdown system
- Shut down on low oil pressure and high engine temperature commonly seen listed as (LOP/HET protection)
- 12 volt control and starting circuitry for easy cold weather starting
- Automated glow plug control for cold weather starting
- Large engine Digital Display and Diagnostics module (DDD), this is a multi-function tool to view engine parameters and fault codes
- Automatic 60 second power off delay engine shutdown for turbo protection
- 3 year engine warranty
- Powerful 38kw, six phase alternator, rectifier and ripple filter for ultra low DC output ripple
- Maintenance free, long life single bearing
- Automatic voltage build-up and protection
- Adjustable peak output current limiting control, 2,000 amp peak, 600 amp continuous output
- Cable head voltage sensing and output voltage drop compensation system ensures full power is provided to aircraft
- Aircraft cable head interlock circuit
- Wiring and color code in accordance with CE, NFPA and NEC
- 30 ft (9.1 m) DC output cable
- Durable, compact, maneuverable, trailer mounted unit with fifth wheel steering
- Front wheel scrub brake for simplicity
- Weather resistant powder coated sheet metal to prevent corrosion
- Corner lights and stack light
- Large cable trays for easy cable stowage
- Finish: Durable Powder Coat Tronair Blue
- Standard Cold Weather Features:
- 120 V Block Heater
- Larger capacity starting battery 900 CCA AGM type battery
- Automatic Glow Plugs
- Insulation package for the engine enclosure and sound dampening
Aircraft Applications: -
Standard Features
- Our Portable Deicer Features:
- 2 1/2 gal (9.5 l) fluid capacity
- Stainless steel tank
- 15 ft (4.6 m) #4 hose wih quick disconnect fittings
- 4 to 10.5 ft (1.2 to 3.2 m) telescoping wand assembly
- Adjustable nozzle allows spray angle control
- 100 psi (6.9 bar) maximum air pressure
- Certified pressure gauge indicates safe range
- Tank handle acts as shut-off valve
Aircraft Applications: -
Standard Features
- Stainless steel fluid tanks with large fill ports, bleed-off valve and safety pop-off valve
- Operates off 125 psi (8.6 bar) shop air
- Pressure regulator with certified pressure gauge provided for flow control
- Solution agitation circuit
- 2 - ASME certified steel compressed air storage tanks with drain valves (1 on 08-4048-0013, 0 on 08-4059-0013)
- Sturdy welded steel frame
- 20 ft (6 m) output hose
- Foot brake
- Finish: Durable Powder Coat Tronair Blue
- 4 ft (1.2 m) wand assembly with shut-off valve and 4 spray nozzles: 1.5, 3, 6, and 10 gpm (6, 11, 23, and 38 lpm)
Aircraft Applications: -
Standard Features
- Safely transfer aircraft fuel
- Filters particles up to 1/2 micron
- Air operated to eliminate spark hazard
- 10 cfm (4.7 lps) @ 50 psi (33 bar) shop air required
- Diaphragm pump with air inlet control valve and regulator certified pressure 0-100 psi (0-6.8 bar) gauge
- 2 static discharge reels - 20 ft (6 m) and 50 ft (15 m) long
- 50 psi (33 bar) maximum operating pressure
- 50 psi (33 bar) safety valve
- 98% particle removal
- 15 ft (4.5 m) #16 discharge hose with shut-off valve
- 40 ft (12.2 m) #16 suction hose with shut-off valve
- Welded steel cart with tool tray and 14 in (35.6 cm) wheels
- 15 gpm (57 lpm) flow
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Standard Features
- Sturdy welded steel construction
- 8 gal (30.1 l) fluid resistant reservoir
- 2 micron filtration (beta rating > 2000 @ 4µm per ISO 4572)
- 200 psi (13.8 bar) maximum pressure
- High displacement hand pump (13 strokes per quart)
- 15 ft (4.6 m) #6 hose with 37º JIC female swivel connector
- 8 in (20 cm) semi-pneumatic tires
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Looking For Custom Parts?
Contact Us -
Standard Features
- 2 gal (7.6 l) reservoir
- 2 in (5 cm) filler port
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 200 psi (13.8 bar) maximum pressure
- 8 in (20.3 cm) sight glass
- Bulkhead plate for installation of size #12 bulkhead quick disconnect coupling half (coupling not included)
- High displacement hand pump (13 stokes per quart)
- Hose storage bracket
- Sealed fill cap with pressure relief and vacuum breaker valves
- Servicing of MIL-PRF-23699 or MIL-PRF-87257 hydraulic reservoir fluid
- Stainless steel construction
Aircraft Applications: -
Standard Features
- 8 gal (30 l) polyethylene reservoir
- 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector
- Shut off valve for static testing
- 2 micron filtration (beta rating > 2000 @ 4µm per ISO 4572)
- Dual stage manual hand pump
- Stroke displacement: 2.1 cu in/stroke to 500 psi, .4 cu in/stroke to 5,000 psi
- 8 in (20 cm) semi-pneumatic tires
- Dual hose selector valve standard on 06-5004 and 06-5041 series only
- Sturdy welded steel construction
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -

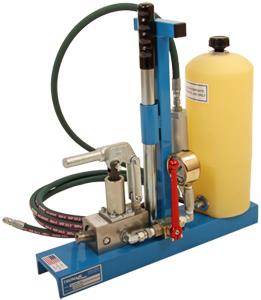

Standard Features
- 06-4005-0520 equipped with Airbus coupling
- 2 qt (1.9 l) reservoir
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- Shut off valve (zero leakage)
- Single stage manual hand pump
- Stroke displacement .58 cu in/stroke
- Relief set 3,250 psi
- Pressure gauge 5,000 psi (345 bar)
- 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Standard Features
- Aircraft Hydraulic Lift Crane Features:
- Our Aircraft cranes have a heavy duty base and frame provide required counterweight for safe lifting
- Anti-slip mats are placed on all walking surfaces (OSHA 1910 Subpart D - Walking Working Surfaces - aides in preventing slips, trips and falls)
- 2 in (5 cm) boom adjustment increments with seven (7) positions
- Conveniently located controls with hardware and connection points to easily add field options
- Safety fuse prevents the load from dropping in the event of a hydraulic failure (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - eliminates potential know hazard of hydraulic failure by adding a safety fuse to prevent a falling load)
- Heavy duty load bearing wheels in front and swivel casters in rear for easy maneuvering under load
- Manual floor lock to prevent crane movement (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from know hazards. Movement of a crane while setting or picking is a know hazard. The locking wheels help eliminate this hazard)
- Designed to provide maximum work space
- Finish: Durable Powder Coat Tronair Blue
- Fuselage utility crane lifting capacities are listed without the Gooseneck Boom in the retracted position
Aircraft Applications: -
Standard Features
- B4 & B4 Stand Features:
- Sturdy welded steel construction
- Platform size: 3 ft (.9 m) x 8 ft (2.4 m)
- 500 lb (227 kg) capacity
- 48 in (122 cm) removable guardrails (OSHA 1910 Subpart D - Walking Working Surfaces - built in fall protection with guardrails. Removability of guardrails also adds to the ability to apply different fall protection techniques that may be more applicable given situation and work to be done)
- 04-6029-5111-A5 & 04-6030-5111-A2:48 in (122 cm) gated guardrails with self closing hinges (OSHA 1910 Subpart D - Walking Working Surfaces - built in fall protection with guardrails. Removability of guardrails also adds to the ability to apply different fall protection techniques that may be more applicable given situation and work to be done)
- Hydraulic foot pedal pump
- Nonslip composite platform (OSHA 1910 Subpart D - Walking Working Surfaces - aides in preventing slips, trips and falls)
- Safety mechanical platform stops (OSHA Act 1910 Section 5(a) (1) - General Duty Clause - eliminates potential known hazard of mechanical/hydraulic failure by adding a mechanical safety stop to help prevent the platform from falling)
- Toe board (OSHA 1910 Subpart D - Walking Working Surfaces - built in falling object protection with toe boards)
- 4 swivel casters with foot brake and swivel locks for easy positioning
- Towbar for easy maneuvering
- Rubber bumpers on platform corners for aircraft protection
- Telescoping ladder reaches raised platform height
- CE marked
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Vendor:TRONAIRHydraulic Maintenance Platform (B4 Type) Maximum Height (8 ft/2.4 m) (CE)
04-6029-5111
Standard Features
- B4 & B4 Stand Features:
- Sturdy welded steel construction
- Platform size: 3 ft (.9 m) x 8 ft (2.4 m)
- 500 lb (227 kg) capacity
- 48 in (122 cm) removable guardrails (OSHA 1910 Subpart D - Walking Working Surfaces - built in fall protection with guardrails. Removability of guardrails also adds to the ability to apply different fall protection techniques that may be more applicable given situation and work to be done)
- Hydraulic foot pedal pump
- Nonslip composite platform (OSHA 1910 Subpart D - Walking Working Surfaces - aides in preventing slips, trips and falls)
- Safety mechanical platform stops (OSHA Act 1910 Section 5(a) (1) - General Duty Clause - eliminates potential known hazard of mechanical/hydraulic failure by adding a mechanical safety stop to help prevent the platform from falling)
- Toe board (OSHA 1910 Subpart D - Walking Working Surfaces - built in falling object protection with toe boards)
- 4 swivel casters with foot brake and swivel locks for easy positioning
- Towbar for easy maneuvering
- Rubber bumpers on platform corners for aircraft protection
- Telescoping ladder reaches raised platform height
- CE marked
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications:
