+1-800-426-6301Standard Features
- 18 HP (13KW), Tier II, 2 cylinder gasoline engine
- 6 gpm (22.7 lpm) pressure compensated pump
- 2 micron pressure, 5 micron return filters
- Electric start, hour meter, tachometer
- Motor spark arrestor
- Oil and hydraulic fluid coolers
- Reservoir selector valve
- 6 gal (22.7 l) 5 hour fuel tank
- Dual scale flowmeter and pressure gauge
- High oil temperature switch
- Low oil pressure shut-down
- 2.6 qt (2.5 l) oil sump
- 370 cold cranking amp batteries (0ºF)
- Reservoir level sight gauge
- Sturdy welded steel frame
- Trailer towbar and locking brake
- 30 ft (9 m) pressure and return hoses
- Finish: Durable Powder Coat Tronair Blue

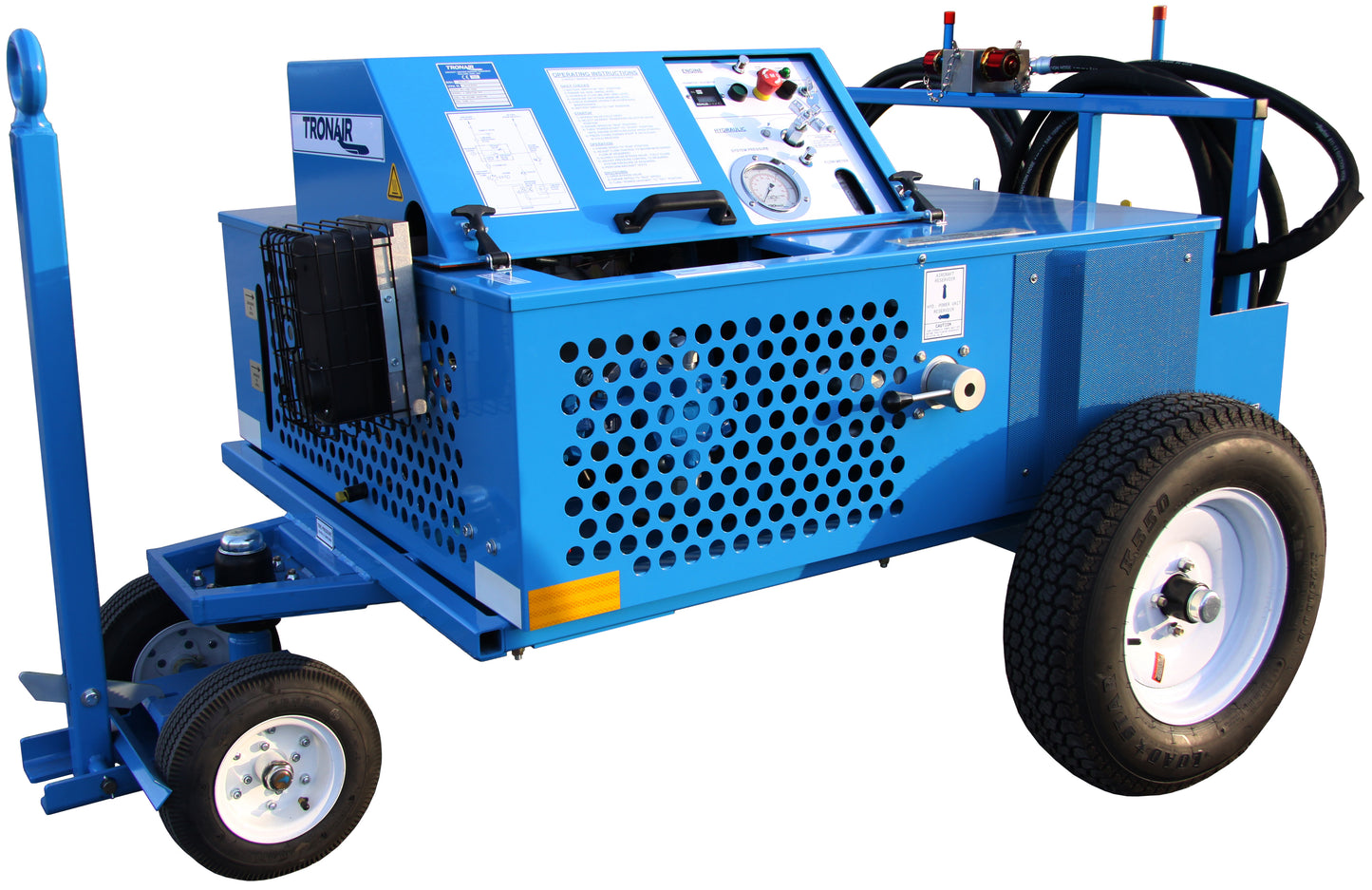

TRONAIR
50111ZZG
Specifications
Aircraft Applications
Resources
Specifications
Fluids
- Fluid: MIL-PRF-5606
Dimensions
- Height In (Cm): 46 (117)
- Length In (Cm): 76 (194)
- Weight Lb (Kg): 1,150 (522)
- Width In (Cm): 64 (163)
Performance
- Max Pressure Psi (Bar): 1,500 (103)
- Pressure Gauge Psi (Bar): 3,000 (207)
Engine/Motor Specs
- Motor Hp (Kw): 18 (13)
Aircraft Applications
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
