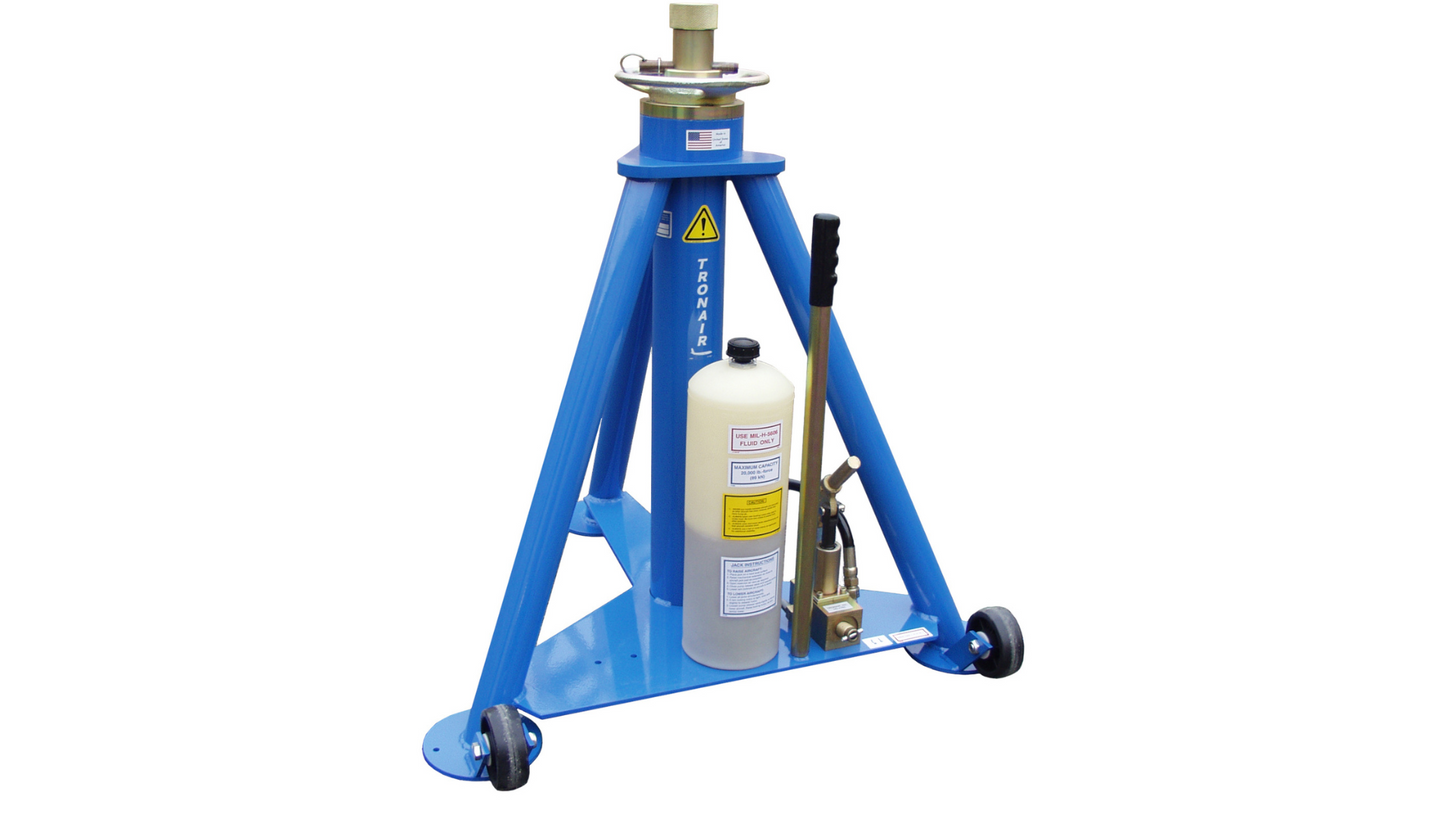

10 Ton Tripod Jack (CE)
02-1032C0111
SKU:Model02-1032C0111
Does this product fit your model?
View Aircraft Applications
Available to Order
Separate Adaptor may be required for some aircraft models. View Adaptor
Standard Features
- Hand Pump with built-in pressure relief valve
- Threaded rams with improved hand wheel style safety nut
- Quick rising center extension
- Easy access filler/breather cap
- Heavy-duty wheels on all aircraft tripod jacks where spring loaded casters are not standard
- Hydraulic fluid: MIL-PRF-5606
- 3/4 in (2 cm) spherical radius cup jack pad
- Finish: Durable Powder Coat Tronair Blue
- Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)
Optional Features
- Air Pump (field installed) - call Tronair
- Air Pump (factory installed) - insert an "A" as the third digit of the model number (e.g. 02A0522-0140)
- Air Pump and Spring Loaded Casters (factory installed) - insert a "B" as the third digit of the model number (e.g. 02B0517-0140)
- Spring Loaded Casters (factory installed) - insert a "C" as the third digit of the model number (e.g. 02C7856C0100); not standard on 5 ton jacks
TRONAIR
02-1032C0111
Specifications
Accessories and Spares
Aircraft Applications
Resources
Specifications
Dimensions
- Base Radius: 16.5
- Closed Height In (Cm): 32 (81)
- Extended Height In (Cm): 60.25 (153)
- Hydraulic Extension In (Cm) (Hydraulic Lift): 16.25 (41)
- Mechanical Extension In (Cm) (Extension Screw): 12 (30)
- Weight Lb (Kg): 164 (74)
Performance
- Capacity Tons: 10
Type/Other
- Hand Pump/Air Pump: Hand Pump
- Single (S) Or Multi (M) Stage: S
Accessories and Spares
- K-1050 — Kit, Ram Seal (AS REQUIRED)
- K-3441 — Seal Kit (AS REQUIRED)
- R-1276 — Aircraft Adapter (Main) 1 required per jack (Textron (Cessna) - Citation III)
- R-1276 — Aircraft Adapter (Main) 1 required per jack (Textron (Cessna) - Citation IV)
- R-1276 — Aircraft Adapter (Main) 1 required per jack (Textron (Cessna) - Citation VI)
- R-1276 — Aircraft Adapter (Main) 1 required per jack (Textron (Cessna) - Citation VII)
- R-1276 — Aircraft Adapter (Main) 1 required per jack (Textron (Cessna) - Citation 650)
- R-1276 — Aircraft Adapter (Main) 1 required per jack (Embraer - EMB-120)
Aircraft Applications
Beechcraft - Hawker 4000 (Horizon),
Beechcraft - HS-125 400 Series,
Beechcraft - HS-125 800/850/900 Series,
Bombardier (Business) - Challenger 600,
Bombardier (Business) - Challenger 601,
Bombardier (Business) - Challenger 604,
Bombardier (Business) - Challenger 605 (CL605),
Bombardier (Business) - Challenger 650,
Bombardier (Business) - Learjet 45,
Bombardier (Business) - Learjet 60,
Bombardier (Business) - Learjet 70,
Bombardier (Business) - Learjet 75,
McDonnell Douglas - DC-9 Series 10,
McDonnell Douglas - DC-9 Series 20,
McDonnell Douglas - DC-9 Series 30,
McDonnell Douglas - DC-9 Series 33,
Textron (Cessna) - Citation 650,
Textron (Cessna) - Citation III,
Textron (Cessna) - Citation IV,
Resources
-
Current Operation and Service Manual
Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
