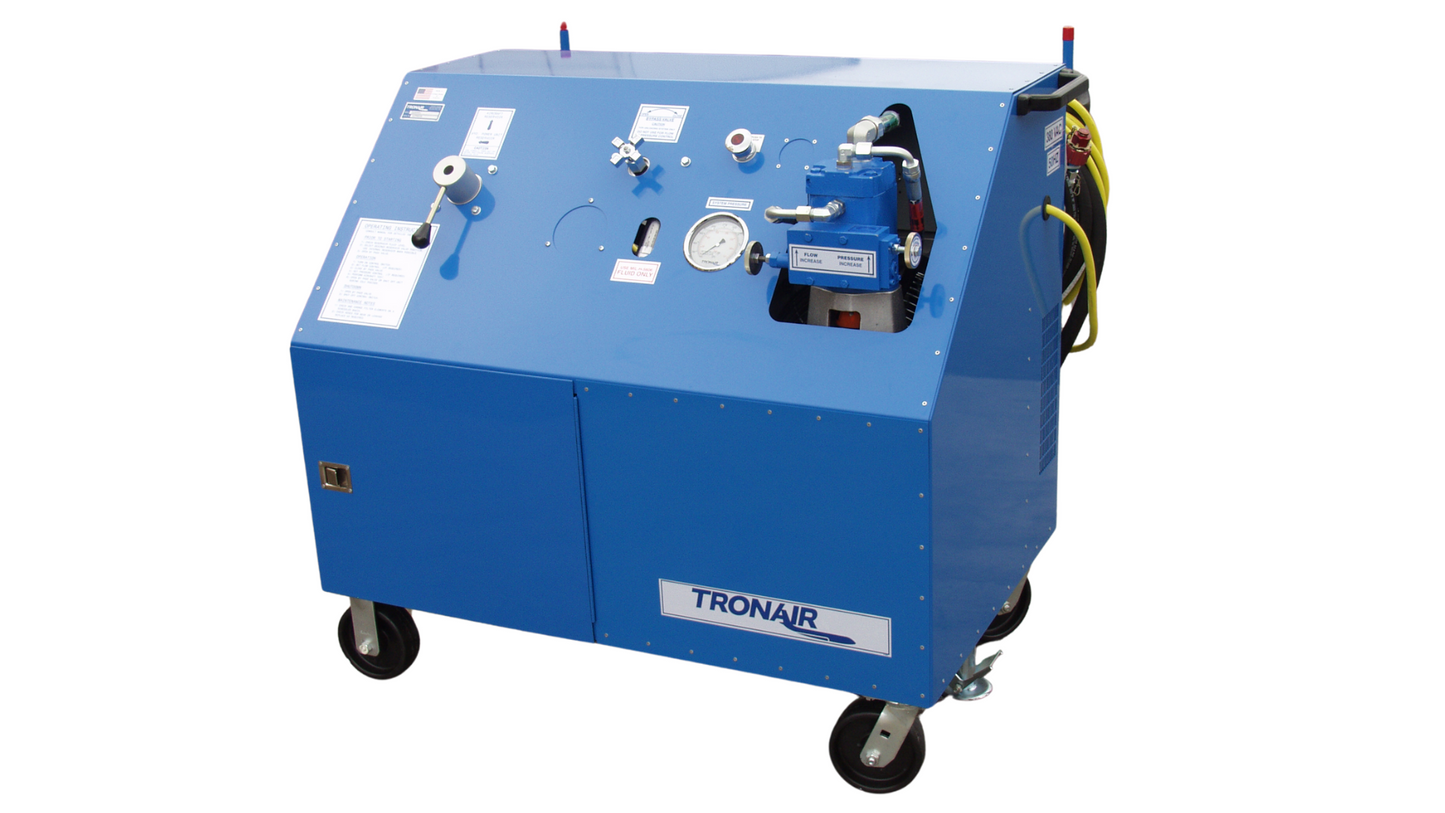

Hydraulic Power Unit, 51 Series

Name: 5110
Brand: TRONAIR
SKU: 5110
Availability: InStock

5110

SKU:Model5110

Hydraulic power (ata-29)

Does this product fit your model?

View Aircraft Applications

Available to Order

Request a Quote

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features

6 gpm (22.7 lpm) pressure compensated pump with adjustable flow and pressure controls
Certified pressure gauge
0-10 gpm (0-38 lpm) dual scale flowmeter
2.4 gpm (9 lpm) flow at rated pressure
Bypass valve
Reservoir selector valve
2 micron absolute non-bypass pressure filter (Beta rating > 2,000 based on ISO 4572)
#8 pressure and #16 return hoses (PE), or #12 return hose (MB), 15 ft (4.5 m) long with 37° JIC swivel connectors
Standard 50 ft. (15.2 m) input power cord
Heavy duty 3 phase motor
Heavy duty starter with overload protection and external manual reset button
Sturdy welded steel frame with 16 gauge sheet metal cabinet
Fluid sample valve
Operating instruction located on instrumen panel
Two (2) fixed and two (2) swivel casters for easy manuvering
Finish: Durable Powder Coat Tronair Blue
51 Series Only:
Stainless steel 13 gal (49 l) reservoir
Heat exchanger with electric fan
Illuminated On/Off switch
Front access door panel for ease of maintenance
Available Options: A, C, D, F, K, M, T, W
H-1339 - Protective Cover
K-3590 - Unit self servicing kit (MB)
K-3591 - Unit self servicing kit (PE)

Specifications

Fluids

Fluid: MIL-PRF-5606

Dimensions

Height In (Cm): 44 (111)
Length In (Cm): 45 (114)
Weight Lb (Kg): 501 (227)
Width In (Cm): 33 (84)

Performance

Max Pressure Psi (Bar): 3,000 (207)
Pressure Gauge Psi (Bar): 5,000 (345)

Engine/Motor Specs

Motor Hp (Kw): 5 (3.7)

Accessories and Spares

HC-1399 — Pressure Gauge (0-5000 PSI) (ANNUALLY)
HC-1763 — Desiccant Filter (ANNUALLY)
K-1414 — Kit, Filter Element (ANNUALLY)
K-3096 — Kit, Filter Element (MB) (ANNUALLY)
K-3098 — Kit, Filter Element (MB) (ANNUALLY)
K-4008 — KIT, TEST FLUID (ANNUALLY)
TF-1037-01*180 — Hose (AS REQUIRED)
TF-1039-01*180 — Hose (AS REQUIRED)
TF-1043-01*180 — ASSEMBLY, HOSE (#4 MB) (AS REQUIRED)
5110-C — Split System Option (Airbus Helicopter (Eurocopter) - AS330 Puma)
5110-EB — (New HPU) Hydraulic Coupling Kit (Airbus Helicopter (Eurocopter) - AS330 Puma)
5110-C — Dual System Option (Airbus Helicopter (Eurocopter) - AS532 Cougar)
5110-EB — (New HPU) Hydraulic Coupling Kit (Airbus Helicopter (Eurocopter) - AS532 Cougar)
5110-C — Split System Option (Leonardo (AgustaWestland) - A109A)
5110-FR — (New HPU) Hydraulic Coupling Kit (choose EX or FR) (Leonardo (AgustaWestland) - A109A)
5110-C — Split System Option (Leonardo (AgustaWestland) - A109C)
5110-FR — (New HPU) Hydraulic Coupling Kit (choose EX or FR) (Leonardo (AgustaWestland) - A109C)
5110-C — Split System Option (Leonardo (AgustaWestland) - A109E)
5110-FR — (New HPU) Hydraulic Coupling Kit (Leonardo (AgustaWestland) - A109E)
5110-C — Split System Option (Leonardo (AgustaWestland) - A109S)
5110-FR — (New HPU) Hydraulic Coupling Kit (Leonardo (AgustaWestland) - A109S)
5110-AV — (New HPU) Hydraulic Coupling Kit (Airbus Helicopter (Eurocopter) - BK-117)
5110-EV — (New HPU) Hydraulic Coupling Kit (split system) (Airbus Helicopter (Eurocopter) - BK-117)
5110-AV — (New HPU) Hydraulic Coupling Kit (Airbus Helicopter (Eurocopter) - BO-105)
5110-AA — Required, (New HPU) Hydraulic Coupling Kit (Bombardier (Business) - C-21)
5110-CN — (New HPU) Hydraulic Coupling Kit (Fairchild Dornier - Dornier DO328)
5110-AN — (New HPU) Hydraulic Coupling Kit (Embraer - EMB-110)
5110-AN — (New HPU) Hydraulic Coupling Kit (Embraer - EMB-120)
5110-CN — (New HPU), Hydraulic Coupling Kit (Fairchild Dornier - Envoy 3)
5110-C — Split System (Dassault - Falcon 10-100)
5110-EB — (New HPU) Hydraulic Coupling Kit (Dassault - Falcon 10-100)
5110-C — Split System Option (Leonardo (AgustaWestland) - Grand New)
5110-FR — Hydraulic Coupling Kit (Leonardo (AgustaWestland) - Grand New)
5110-AB — (New HPU) Hydraulic Coupling Kit (Beechcraft - HS-125 400 Series)
5110-AB — (New HPU) Hydraulic Coupling Kit (Beechcraft - HS-125 800/850/900 Series)
5110-AB — Required, (New HPU) Hydraulic Coupling Kit (Beechcraft - Hawker 1000)
5110-AA — (New HPU) Hydraulic Coupling Kit (BAe - Jetstream 31)
5110-AA — (New HPU) Hydraulic Coupling Kit (BAe - Jetstream 41)
5110-AA — Required, (New HPU) Hydraulic Coupling Kit (Bombardier (Business) - Learjet 23)
5110-AA — Required, (New HPU) Hydraulic Coupling Kit (Bombardier (Business) - Learjet 24)
5110-AA — Required, (New HPU) Hydraulic Coupling Kit (Bombardier (Business) - Learjet 25)
5110-AA — (New HPU) Hydraulic Coupling Kit (Bombardier (Business) - Learjet 31)
5110-AA — Required, (New HPU) Hydraulic Coupling Kit (Bombardier (Business) - Learjet 31A)
5110-AA — Required, (New HPU) Hydraulic Coupling Kit (Bombardier (Business) - Learjet 35)
5110-AA — (New HPU) Hydraulic Coupling Kit (Bombardier (Business) - Learjet 55)
5110-AA — (New HPU) Hydraulic Coupling Kit (Bombardier (Business) - Learjet 60)
5110-C — Split System Option (Leonardo (AgustaWestland) - Mark II)
5110-EX — (New HPU) Hydraulic Coupling Kit (choose EX or FR) (Leonardo (AgustaWestland) - Mark II)
5110-FR — (New HPU) Hydraulic Coupling Kit (choose EX or FR) (Leonardo (AgustaWestland) - Mark II)
5110-AB — (New HPU) Hydraulic Coupling Kit (Pilatus - PC-12)
5110-AB — (New HPU) Hydraulic Coupling Kit (Pilatus - PC-24)
5110-AB — (New HPU) Hydraulic Coupling Kit (Beechcraft - T-1 Jayhawk)
5110-AB — (New HPU) Hydraulic Coupling Kit (Beechcraft - T-400)
5010-AB — Required, (New HPU) Hydraulic Coupling Kit (Bell - 204)
5110-ZZ — No Hydraulic Coupling Kit Option (Shorts - 330)
5110-ZZ — No Hydraulic Coupling Kit Option (Shorts - 360)
5110-AB — (New HPU) Hydraulic Coupling Kit (Sabreliner - 40 Series)
5110-AB — (New HPU) Hydraulic Coupling Kit (Sabreliner - 60 Series)
5110-AB — (New HPU) Hydraulic Coupling Kit (Sabreliner - 70 Series)
CALL TRONAIR — (New HPU) Hydraulic Coupling Kit (Beechcraft - T-6A Texan II)
