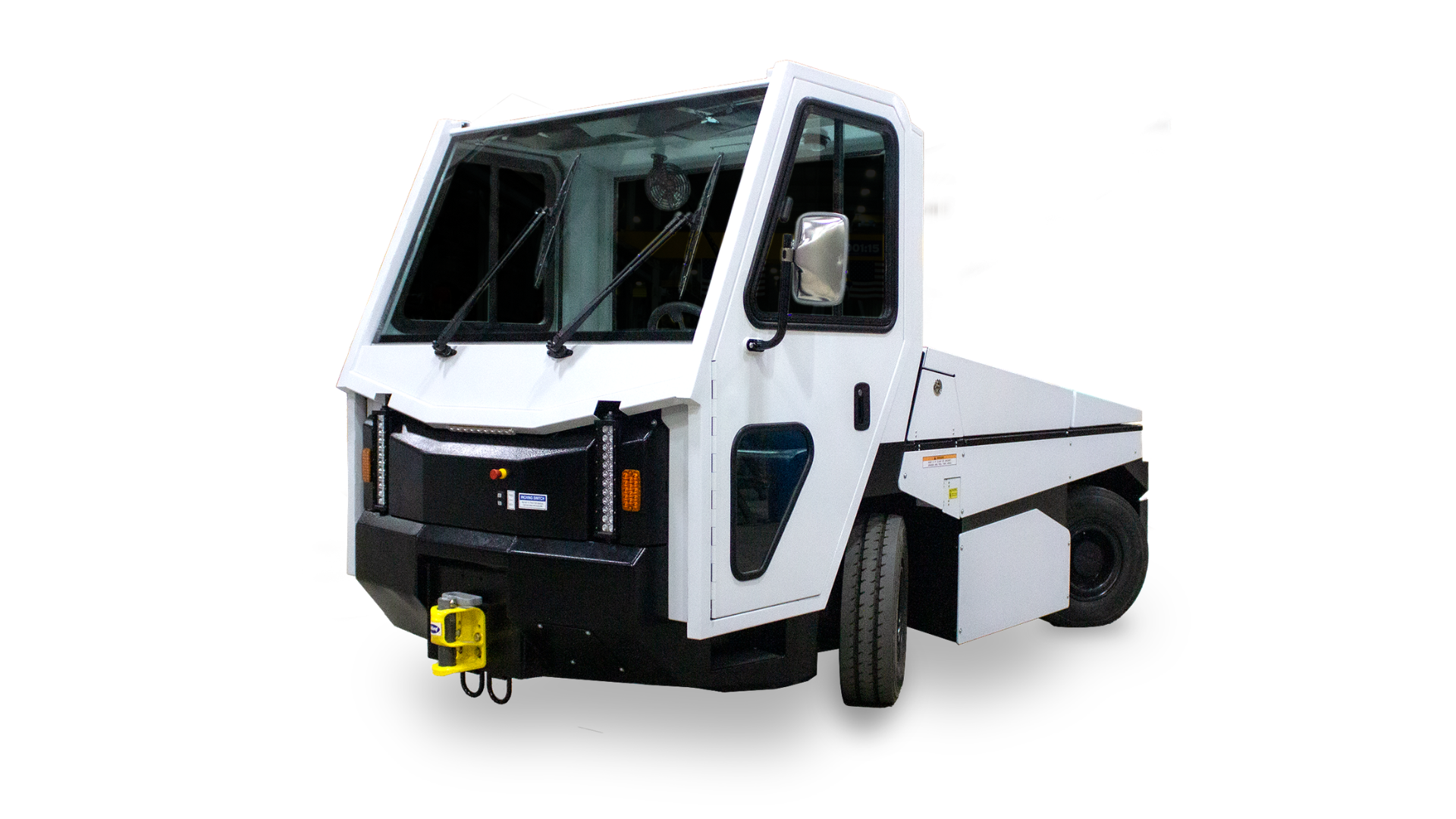

Electric Aircraft Tug (173,000 lb capacity)

Performance

• Aircraft Weight Capacity Lb (Kg): 173,000 lbs / 78,472 kgs
• Drawbar Pull: 12,000 lbf / 53.4 kN at 0.9 COF
• Tuning Radius (Outside): 135 in / 343 cm

Dimensions

• Ground Clearance In (Cm): 6 in / 15 cm
• Height In (Cm): 55 in / 140 cm without cab | 85 in (2,160 mm) with cab
• Length In (Cm): 148.5 in / 377 cm without hitches
• Width In (Cm): 60.5 in / 154 cm

Engine/Motor Specs

• Engine: Electric Motor

Travel

• Speed Full Load Mph (Kph): 3 mph / 5 kph
• Speed Empty Mph (Kph): 12 mph / 19.3 kph

• A-ES12-0485 — FILTER ELEMENT (ANNUALLY)
• AE-OPT-0320-B — DC-DC CONVERTER 500W 80V->12V (AS REQUIRED)
• BLN-1 — FUSE, 250 V, 1A (AS REQUIRED)
• BLN-10 — FUSE, 250V, 10A (AS REQUIRED)
• EC-1619-09 — FUSE, LOW VOLTAGE LIMITER (AS REQUIRED)
• EC-1619-19 — FUSE, LOW VOLTAGE LIMITER (AS REQUIRED)
• EC-3006 — CONTACTOR, 600A, 12V (AS REQUIRED)
• EC-3400 — WORKLIGHT, 13" X 3" (AS REQUIRED)
• EC-3493-PGM-1 — PRESSURE SENSOR, PROGRAMMED (AS REQUIRED)
• ET00-54-001-CA — ENCODER BEARING ETT (AS REQUIRED)
• ET00-59-001-CA — ETT SHIFT VALVE - COMPLETE (AS REQUIRED)
• MIN-10 — MINI AUTO BLADE FUSE, 10A (AS REQUIRED)
• MIN-15 — 15A MINI FUSE (AS REQUIRED)
• MIN-2 — MINI AUTO BLADE FUSE, 2A (AS REQUIRED)
• NVSP-31-002-CA — SEALED RELAY (AS REQUIRED)
• XL00-81-001-CA — RELAY, BUSSMANN BOX (AS REQUIRED)
• Z-11062 — ASY, COOLING FANS (AS REQUIRED)
• Z-11102 — ASY, CONTACTOR AND TERMINAL (AS REQUIRED)
• Z-11335 — ASY, TIRE AND RIM, 700R12 (AS REQUIRED)
• Z-11366 — TAIL LIGHT W/CONNECTOR (AS REQUIRED)
• Z-11367 — REVERSE LIGHT W/CONNECTOR (AS REQUIRED)
• Z-9826 — ASY, TURN IND W/CONNECTOR (AS REQUIRED)
• Z-9940 — PRX SENSOR BUZZLITE W CONNECT (AS REQUIRED)
