MALABAR

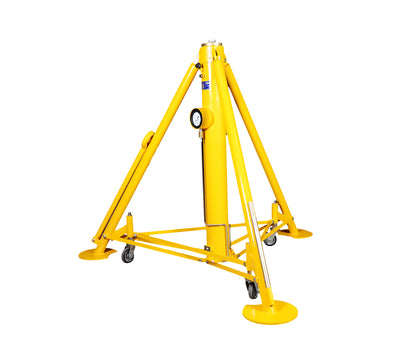

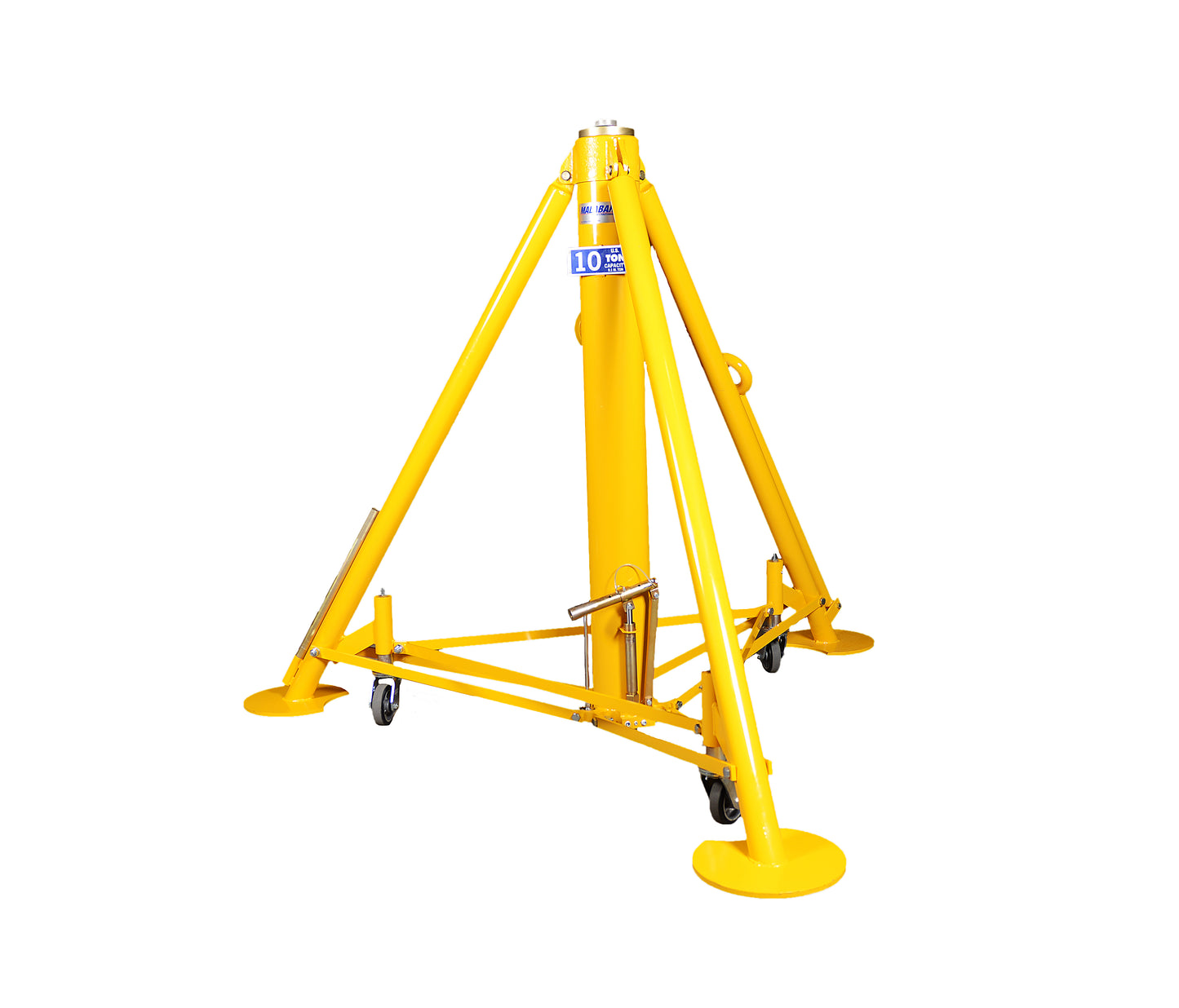

8721A Tripod Jack (11 Ton)

872100A-4

Model872100A-4

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
View full details

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty swivel casters
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity
  • 3 year standard warranty
  • Shipment on domestic skid

Optional Features

  • Air operated hydraulic pump
  • Load gauge for load indication (reads tons/psi)g)
  • Tow handle for ease of towing
  • Customer specified paint color
  • Export crating
MALABAR

872100A-4

Request a Quote

Specifications

Aircraft Applications

Resources

Specifications

Dimensions

  • Base Radius: 22
  • Closed Height In (Cm): 67 (170)
  • Extended Height In (Cm): 138 (351)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 53 (134.6)
  • Mechanical Extension In (Cm) (Extension Screw): 18 (45.7)
  • Weight Lb (Kg): 600 (272)

Performance

  • Capacity Tons: 11

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: S
