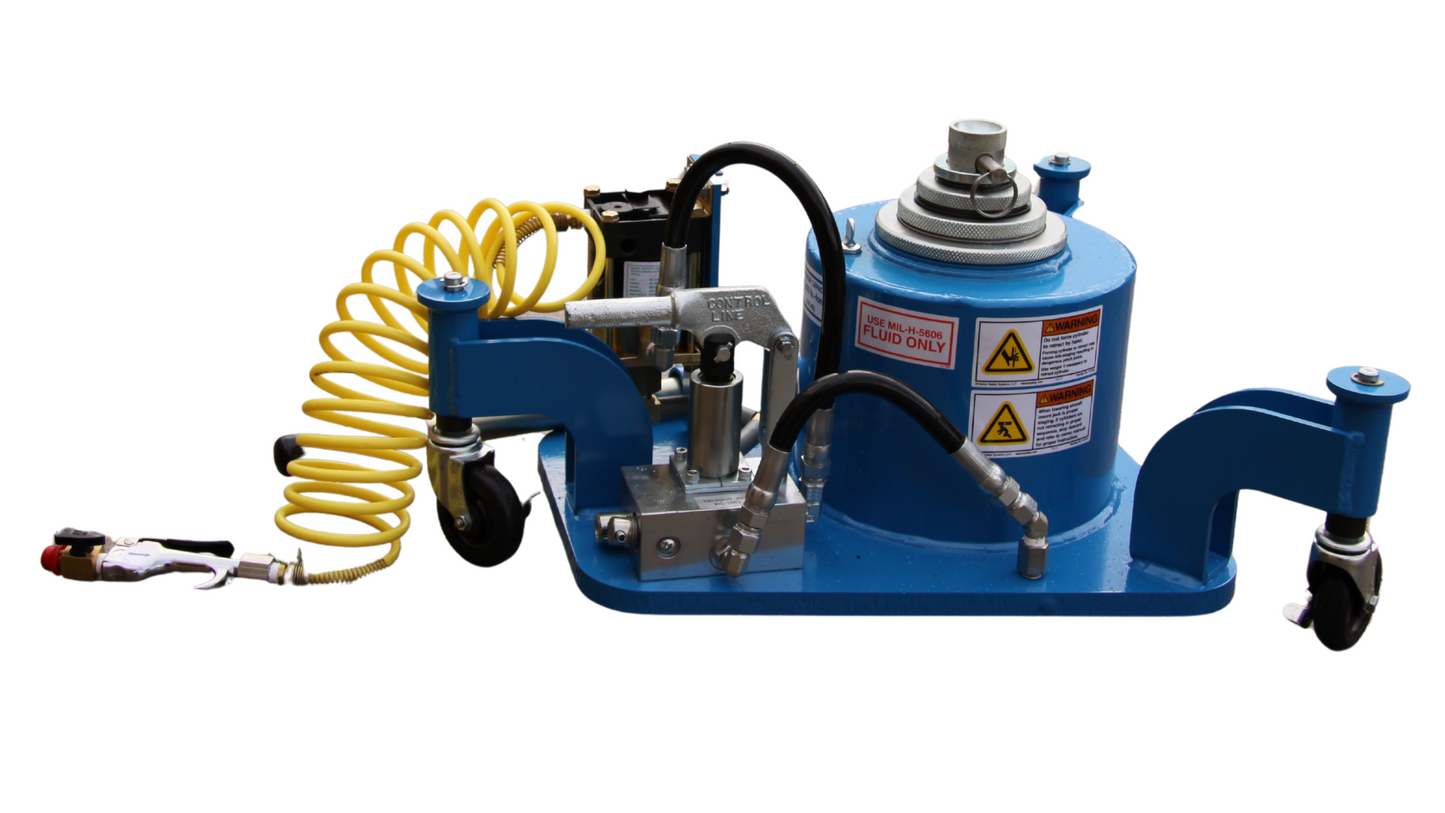

Nose Jack with Air Pump (5 ton/4.5 metric ton) (Landing Gear) (CE)

Performance

• Capacity Tons: 5

Dimensions

• Closed Height In (Cm): 11.6 (29.5)
• Extended Height In (Cm): 32 (81.3)
• Hydraulic Extension In (Cm) (Hydraulic Lift): 17.5 (44.5)
• Mechanical Extension In (Cm) (Extension Screw): 3 (7.6)
• Weight Lb (Kg): 162 (73.5)

Type/Other

• Hand Pump/Air Pump: Air Pump
• Single (S) Or Multi (M) Stage: M

• K-4463 — KIT, RAM SEALS (AS REQUIRED)
• TF-1043-06*12.0 — ASSEMBLY, HOSE (#6 MB) (AS REQUIRED)
• K-4220 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Leonardo (AgustaWestland) - AW139 (AB139))
• K-3579 — Adaptor Kit (Leonardo (AgustaWestland) - A109A)
• R-1187-01 — Main Jack Pad Adapter (Leonardo (AgustaWestland) - A109A)
• R-1187-02 — Nose Jack Pad Adapter (Leonardo (AgustaWestland) - A109A)
• K-3579 — Adaptor Kit (Leonardo (AgustaWestland) - A109C)
• R-1187-01 — Main Jack Pad Adapter (Leonardo (AgustaWestland) - A109C)
• R-1187-02 — Nose Jack Pad Adapter (Leonardo (AgustaWestland) - A109C)
• K-3579 — Adaptor Kit (Leonardo (AgustaWestland) - A109E)
• R-1187-01 — Main Jack Pad Adapter (Leonardo (AgustaWestland) - A109E)
• R-1187-02 — Nose Jack Pad Adapter (Leonardo (AgustaWestland) - A109E)
• K-3579 — Adaptor Kit (Leonardo (AgustaWestland) - A109S)
• R-1187-01 — Main Jack Pad Adapter (Leonardo (AgustaWestland) - A109S)
• R-1187-02 — Nose Jack Pad Adapter (Leonardo (AgustaWestland) - A109S)
• K-4220 — Shop Air Manifold Kit (Airbus Helicopter (Eurocopter) - BK-117)
• K-4220 — Shop Air Manifold Kit (Airbus Helicopter (Eurocopter) - BO-105)
• K-4220 — Shop Air Manifold Kit (Airbus Helicopter (Eurocopter) - H135 (EC135))
• K-4220 — Shop Air Manifold Kit (Airbus Helicopter (Eurocopter) - H145 (EC145))
• K-4220 — Shop Air Manifold Kit (Airbus Helicopter (Eurocopter) - H175 (EC175))
• K-3579 — Adaptor Kit (Leonardo (AgustaWestland) - Grand New)
• R-1187-01 — Main Jack Pad Adapter (Leonardo (AgustaWestland) - Grand New)
• R-1187-02 — Nose Jack Pad Adapters (Leonardo (AgustaWestland) - Grand New)
• R-1187-01 — Main Jack Pad Adapter (Leonardo (AgustaWestland) - Mark II)
• R-1187-02 — Nose Jack Pad Adapter (Leonardo (AgustaWestland) - Mark II)
• K-4220 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Leonardo (AgustaWestland) - MH-139A)
• K-4220 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Sikorsky - S-76 (AUH-76))
• K-4220 — Shop Air Manifold Kit (Airbus Helicopter (Eurocopter) - UH-72A Lakota)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 204)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 205)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 206B3)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 206LT)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 206L4)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 212)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 222)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 230)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 412)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 430)
• K-4220 — Kit, Manifold (Bell - 525)

• Leonardo (AgustaWestland) - AW139 (AB139)
  • K-4220 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Leonardo (AgustaWestland) - A109A
  • K-3579 - Adaptor Kit
  • R-1187-01 - Main Jack Pad Adapter
  • R-1187-02 - Nose Jack Pad Adapter
• Leonardo (AgustaWestland) - A109C
  • K-3579 - Adaptor Kit
  • R-1187-01 - Main Jack Pad Adapter
  • R-1187-02 - Nose Jack Pad Adapter
• Leonardo (AgustaWestland) - A109E
  • K-3579 - Adaptor Kit
  • R-1187-01 - Main Jack Pad Adapter
  • R-1187-02 - Nose Jack Pad Adapter
• Leonardo (AgustaWestland) - A109S
  • K-3579 - Adaptor Kit
  • R-1187-01 - Main Jack Pad Adapter
  • R-1187-02 - Nose Jack Pad Adapter
• Airbus Helicopter (Eurocopter) - BK-117
  • K-4220 - Shop Air Manifold Kit
• Airbus Helicopter (Eurocopter) - BO-105
  • K-4220 - Shop Air Manifold Kit
• Airbus Helicopter (Eurocopter) - H135 (EC135)
  • K-4220 - Shop Air Manifold Kit
• Airbus Helicopter (Eurocopter) - H145 (EC145)
  • K-4220 - Shop Air Manifold Kit
• Airbus Helicopter (Eurocopter) - H175 (EC175)
  • K-4220 - Shop Air Manifold Kit
• Leonardo (AgustaWestland) - Grand New
  • K-3579 - Adaptor Kit
  • R-1187-01 - Main Jack Pad Adapter
  • R-1187-02 - Nose Jack Pad Adapters
• Leonardo (AgustaWestland) - Mark II
  • R-1187-01 - Main Jack Pad Adapter
  • R-1187-02 - Nose Jack Pad Adapter
• Leonardo (AgustaWestland) - MH-139A
  • K-4220 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Sikorsky - S-76 (AUH-76)
  • K-4220 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Airbus Helicopter (Eurocopter) - UH-72A Lakota
  • K-4220 - Shop Air Manifold Kit
• Bell - 204
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 205
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 206B3
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 206LT
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 206L4
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 212
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 222
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 230
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 412
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 430
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 525
  • K-4220 - Kit, Manifold
