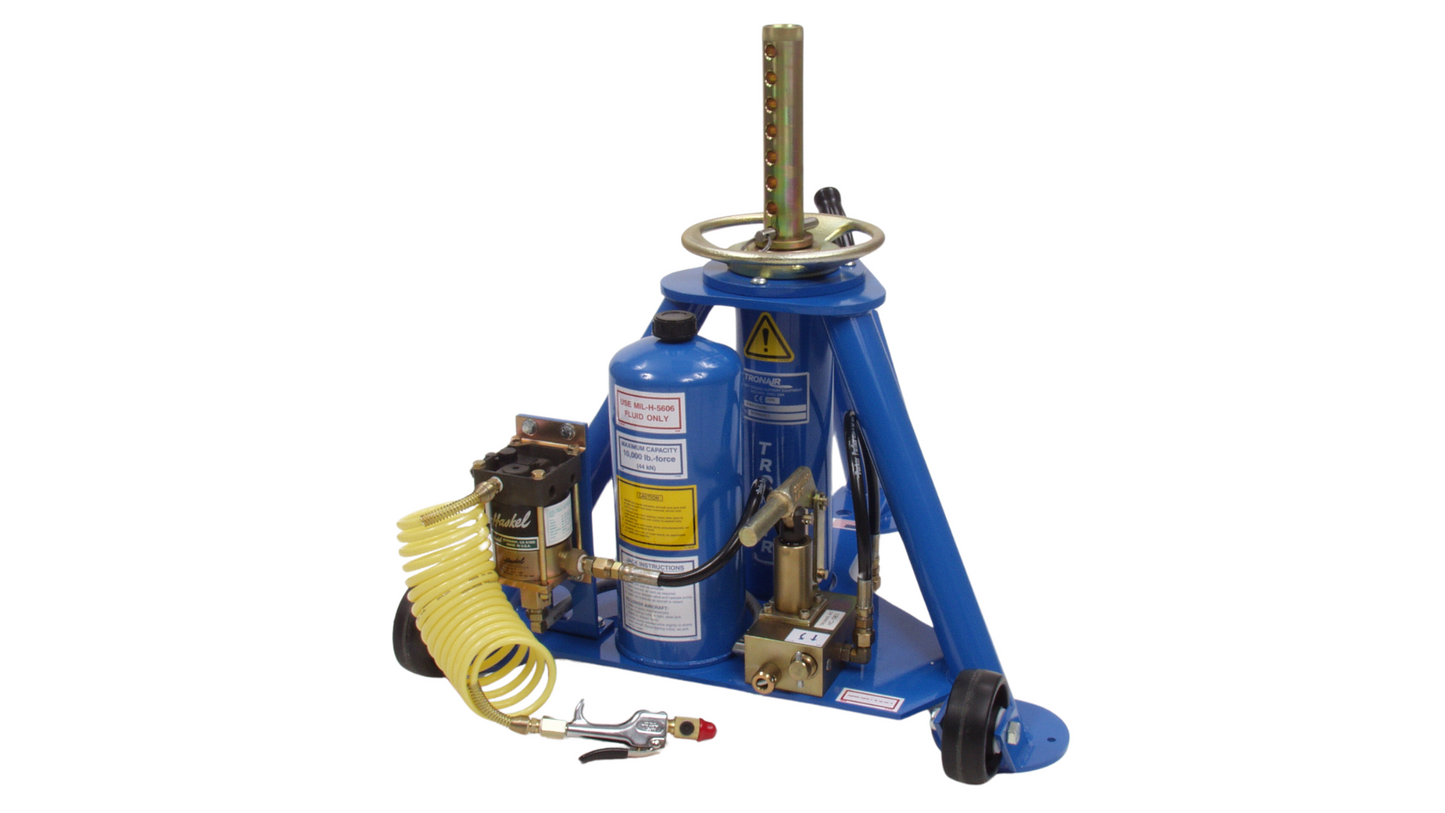

JACK, TRIPOD 5 TON (CE)

Performance

• Capacity Tons: 5

Dimensions

• Closed Height In (Cm): 17.625 (44.77)
• Extended Height In (Cm): 46.625 (118.43)
• Hydraulic Extension In (Cm) (Hydraulic Lift): 22 (55.88)
• Mechanical Extension In (Cm) (Extension Screw): 7 (17.78)
• Weight Lb (Kg): 105 (47.63)

Type/Other

• Single (S) Or Multi (M) Stage: M

• K-1685 — Kit, Repair Fluid Seal (AS REQUIRED)
• K-1686 — Kit, Repair Air Seal (AS REQUIRED)
• K-3441 — Seal Kit (AS REQUIRED)
• K-4588 — Ram O-Ring Kit (AS REQUIRED)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with Air Pump) (Airbus Helicopter (Eurocopter) - AS365N Dauphin)
• K-4220 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Leonardo (AgustaWestland) - AW169)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - CH-139)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with Air Pump) (HondaJet - HA-420 HondaJet)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Textron (Cessna) - Mustang 510)
• R-1798 — Main Jack Pad Kit, 2 required (Textron (Cessna) - Mustang 510)
• R-2008 — Nose Jack Pad Kit, 1 required (Textron (Cessna) - Mustang 510)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - OH-58)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - TH-67)
• K-1106 — Shop Air Manifold Kit (Bell - 206B3)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 206LT)
• K-1106 — Shop Air Manifold Kit (Bell - 206L4)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Airbus Military (CASA) - 212-100)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 214)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 214ST)
• K-1106 — Shop Air Manifold Kit (Bell - 407)
• K-1106 — Shop Air Manifold Kit (Bell - 407GX)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 427)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 429)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Bell - 430)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Eclipse - 500)
• K-1106 — Ship Air Manifold Kit (Bell - 505)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Airbus Military (CASA) - CN-235/HC-144A)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Airbus Military (CASA) - 212-200)

• Airbus Helicopter (Eurocopter) - AS365N Dauphin
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with Air Pump)
• Leonardo (AgustaWestland) - AW169
  • K-4220 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - CH-139
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• HondaJet - HA-420 HondaJet
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with Air Pump)
• Textron (Cessna) - Mustang 510
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
  • R-1798 - Main Jack Pad Kit, 2 required
  • R-2008 - Nose Jack Pad Kit, 1 required
• Bell - OH-58
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - TH-67
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 206B3
  • K-1106 - Shop Air Manifold Kit
• Bell - 206LT
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 206L4
  • K-1106 - Shop Air Manifold Kit
• Airbus Military (CASA) - 212-100
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 214
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 214ST
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 407
  • K-1106 - Shop Air Manifold Kit
• Bell - 407GX
  • K-1106 - Shop Air Manifold Kit
• Bell - 427
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 429
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 430
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Eclipse - 500
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Bell - 505
  • K-1106 - Ship Air Manifold Kit
• Airbus Military (CASA) - CN-235/HC-144A
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
• Airbus Military (CASA) - 212-200
  • K-1106 - Air Pump Manifold Kit (for use on tripod jacks with air pump)
