TRONAIR

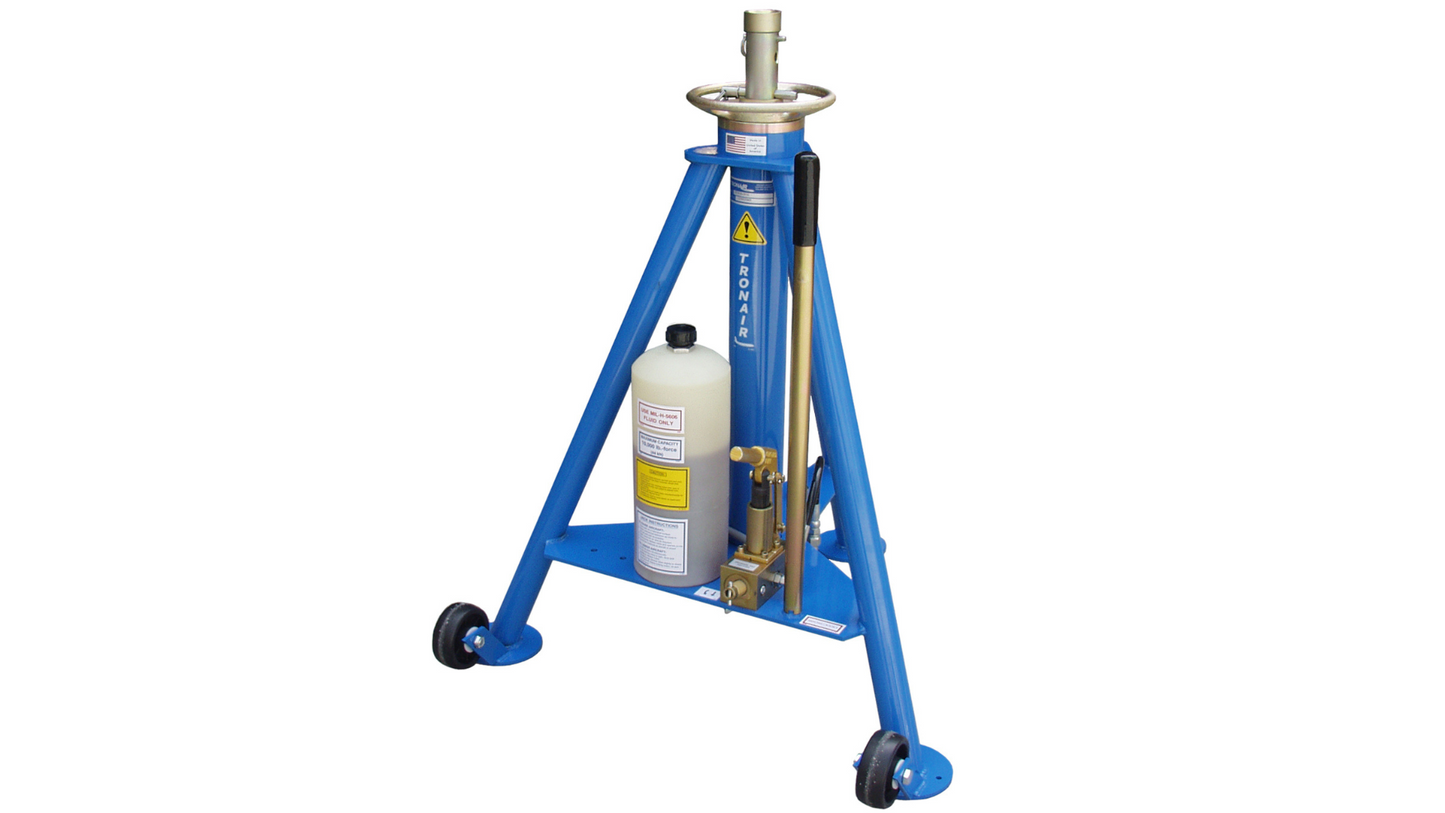

Main Jack (5 ton) (CE)

02-0536C0110

Model02-0536C0110

Lifting and shoring (ata-7)

Does this product fit your model?

View Aircraft Applications
Available to Order
Request a Quote
Icons/Caret-Right

Separate Adaptor may be required for some aircraft models. View Adaptor

View full details

Standard Features:

Hand Pump with built-in pressure relief valve
Threaded rams with improved hand wheel style safety nut
Quick rising center extension
Easy access filler/breather cap
Heavy-duty wheels on all aircraft tripod jacks where spring loaded casters are not standard
Hydraulic fluid: MIL-PRF-5606
3/4 in (2 cm) spherical radius cup jack pad
Finish: Durable Powder Coat Tronair Blue
Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)

TRONAIR

02-0536C0110

Request a Quote

Specifications

Dimensions

  • Base Radius: 15.375
  • Closed Height In (Cm): 36 (91)
  • Extended Height In (Cm): 68 (173)
  • Hydraulic Extension In (Cm) (Hydraulic Lift): 22 (56)
  • Mechanical Extension In (Cm) (Extension Screw): 10 (25)
  • Weight Lb (Kg): 110 (50)

Performance

  • Capacity Tons: 5

Type/Other

  • Hand Pump/Air Pump: Hand Pump
  • Single (S) Or Multi (M) Stage: S

Replacement Parts

  • BAe - Jetstream 31
    • 03-5834-0000 - Tripod Extension (for outboard wing jacking) 2 required for Main
