Showing 13 - 24 of 66
-
Standard Features
- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
- 2,500 psi (172 bar) oxygen intensifier (booster)
- Intensifier (booster) automatically shuts down when the aircraft reaches set pressure
- Easy, one person loading and unloading of 9" diameter x 56" long cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
Aircraft Applications: -
Vendor:TRONAIRTiltable Four Bottle Service Cart (booster, manifold & high pressure regulator) (CE)
20-4523-0000
Standard Features
- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
- 2,500 psi (172 bar) oxygen intensifier (booster)
- Intensifier (booster) automatically shuts down when the aircraft reaches set pressure
- Easy, one person loading and unloading of 9" diameter x 56" long cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
Aircraft Applications: -
Vendor:TRONAIRFour Bottle Oxygen Service Cart (booster, manifold & high pressure regulator) (CE)
20-4505-7000
Standard Features
- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
- 2,500 psi (172 bar) oxygen intensifier (booster)
- Intensifier (booster) automatically shuts down when the aircraft reaches set pressure
Aircraft Applications: -
Standard Features
- 4 hose manifold to connect bottles with CGA-540 fittings (see accessories)
- High pressure regulator (non venting) 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector
- 30:1 volumetric displacement
- 20:1 maximum compression ratio
- Oxygen overpressure relief valve set at 2,700 psi (186 bar)
- Temperature range 0º to 200º F (-17.7º to 93.3º C)
- Operating instructions located on instrument panel
- In-line 15 micron nominal filter
- Sturdy welded steel construction
- Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included), maximum bottle pressure 2,250 psi (155 bar)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Towbar with 23/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Finish: Powder Coat Green
- Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place - 20-4504-7000 & 20-4505-7000 ONLY
Aircraft Applications: -
Vendor:TRONAIRPotable Water Cart, Cold Weather (31 gal/117) fill reservoir (unit includes coupling)
19-4306-0000
Standard Features
- Operates by 12 VDC electric battery with built in charger
- 4.5 gpm (17 lpm) electric pump
- Available in 50 and 60 Hz.
- Meets recognized health organization standards
- Cold weather carts are protected with insulated sheet metal and a 110 volt mat heater
- High density polyethlene tank with UV inhibitor
- Tank access opening for cleaning or bottle water filling
- 15 ft (4.6 m) output hose with potable water coupling
- Front wheels lock with towbar in upright position
- Sturdy welded steel portable water cart
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Vendor:TRONAIRPotable Water Cart, Standard (31 gal/117) fill reservoir (CE) (unit includes coupling)
19-4305-0000
Standard Features
- Operates by 12 VDC electric battery with built in charger
- 4.5 gpm (17 lpm) electric pump
- Available in 50 and 60 Hz.
- Meets recognized health organization standards
- Cold weather carts are protected with insulated sheet metal and a 110 volt mat heater
- High density polyethlene tank with UV inhibitor
- Tank access opening for cleaning or bottle water filling
- 15 ft (4.6 m) output hose with potable water coupling
- Front wheels lock with towbar in upright position
- Sturdy welded steel portable water cart
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Looking For Custom Parts?
Contact Us -
Vendor:TRONAIRTiltable Four Bottle Service Cart (with manifold, high & low pressure regulators)
18-4318-0000
Standard Features
- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
- Easy, one person loading and unloading of cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
- Easy and affordable conversion from exsisting Tronair cart
Aircraft Applications: -
Vendor:TRONAIRTiltable Four Service Bottle Cart (booster, manifold, high & low pressure regulators) (CE)
18-4315-0000
Standard Features
- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
- Easy, one person loading and unloading of cylinders, no muscle strains from picking up cylinders (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extremely easy rotation to horizontal in use position (OSHA Act 1970 Section 5(a)(1) - General Duty Clause and EU OSHA Directive 90/269/EEC - Manual Handling of Loads)
- Extra secure locking pivot point
- Easy and affordable conversion from exsisting Tronair cart
- 4,000 psi (276 bar) nitrogen intensifier (booster) operates off low pressure regulator
- Intensifier (booster) automatically shuts down when aircraft reaches set pressure
Aircraft Applications: -
Vendor:TRONAIRFour Bottle Service Cart (with manifold, high & low pressure regulators)
18-4303-0000
Standard Features
- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
Aircraft Applications: -
Vendor:TRONAIRFour Bottle Service Cart (with booster, manifold, high & low pressure regulators) (CE)
18-4208-0010
Standard Features
- 4 hose manifold to connect bottles with CGA-580 fittings (see accessories)
- High pressure regulator 25 to 4,000 psi (1.7 to 276 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Low pressure regulator 0 to 500 psi (.2 to 34.5 bar) certified gauge with 15 ft (4.6 m) #4 output hose
- Temperature range 0º to 200º F (17.7º to 93.3º C)
- Operating instructions located on instrument panel
- Sturdy welded steel constrution
- Holds four 9 inch (23 cm) diameter nitrogen bottles (bottles not included)
- 13 in (33 cm) diameter pneumatic tires
- Front wheels lock with towbar in upright position (OSHA Act 1970 Section 5(a) (1) - General Duty Clause - an employer has the general duty to provide a safe work environment free from known hazards. Potential movement of the cart on an uneven surface or incline is eliminated by the locking front wheels)
- Movable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place
- Towbar with 2-3/16 in (5.6 cm) ID eyebolt
- Maximum towing speed 10 mph (16 km/hr)
- Hose storage compartment
- Reflectors to improve night visibility
- Low Profile
- CE marked
- Custom Colors Available
- 4,000 psi (276 bar) nitrogen intensifier (booster) operates off low pressure regulator
- Intensifier (booster) automatically shuts down when aircraft reaches set pressure
- Durable Powder Coat Tronair Blue
Aircraft Applications: -

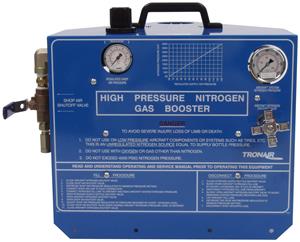

Standard Features
- Mounts on standard nitrogen bottles with CGA-580 connector
- 80 cfm (37.8 lps) at 150 psi (10.3) bar shop air required
- Temperature range 0º to -200º F (17.7º to 93.3º C)
- Sturdy welded steel construction
- 15 ft (4.6m) #4 output hose with 37° JIC female swivel connector
- 5,000 psi (345 bar) certified pressure gauge
- 0 to 160 psi (0 to 11 bar) certified input regulator pressure gauge
- When input regulator is set at a specified pressure the booster automatically shuts down when set pressure is reached
- Finish: Durable Powder Coat Tronair Blue
Aircraft Applications: -
Standard Features
- 50 ft (15.2 m) input power cable (plug not included)
- 25 ft (7.6 m) #4 cabin pressure sensor hose with 37º JIC female swivel connector
- 2 in (5 cm) ID cabin air supply hose, 25 ft (7.6 m)
- 3 phase, heavy duty 20 hp motor, with 5 year warranty
- Heavy duty starter with solid state overload protection
- High output belt driven blower with oil level indicator
- High efficiency industrial blower silencers
- Certified output and cabin pressure gauges 0 to 15 psi (0 to 1.03 bar)
- Certified door seal pressure gauge 0 to 30 psi (0 to 2.07 bar)
- Certified rate of climb indicator
- Air inlet filter, dry element
- Digital flow meter on 15-7607-1000 & 15_7608-1000 series models ONLY
- Pressure relief valve set at 13.5 psi (.93 bar)
- Four swivel casters with 8 in (20.3 cm) hard rubber tires, foot brakes, and swivel locks
- CE marked
- Finish: Durable Powder Coat Tronair Blue
- Note - SCFM to ACFM conversion could reduce flow by 10%
Variants
- 15A7603-1000 - 208V/60Hz/3ph
- 15B7603-1000 - 230V/60Hz/3ph
- 15C7603-1000 - 380V/60Hz/3ph
- 15D7603-1000 - 460V/60Hz/3ph
- 15E7603-1000 - 575V/60Hz/3ph
- 15F7603-1000 - 200V/50Hz/3ph
- 15G7603-1000 - 220V/50Hz/3ph
- 15H7603-1000 - 380V/50Hz/3ph
- 15J7603-1000 - 415V/50Hz/3ph
- Currently Viewing 15K7603-1000 - 440V/50Hz/3ph
Aircraft Applications:
