Solid State Rectifiers, 28.5 VDC

Tronair has a complete inventory of solid-state rectifiers! Find the exact one to fit your needs. With a variety of flow and pressure ranges, weights, and motor horsepower, you're sure to find the one to fit your needs. They are widely used in commercial, regional, and business aircraft environments. This solid-state GPU gets the job done. This ATA-24 solid-state rectifier is everything you need. We have a large supply of ground power units at the ready for your purchase.

The product you are viewing is 3-phase voltage and hertz specific. When ordering, please be certain you choose the correct voltage/hertz for the specific location where your product will be used.

Showing 13 - 16 of 16

Icon/Add
Icon/Add
  • 112850S0000
    View Product Details
    TRONAIR

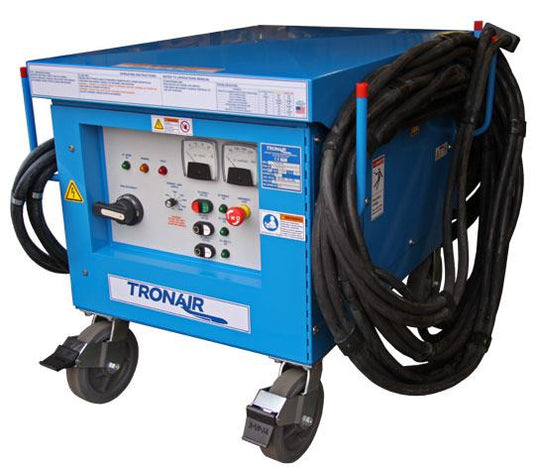

    Rectifier (28.5 vdc, 50Hz) no input cable (CE)

    112850S0000


    Standard Features

    • 2 year Tronair Platinum warranty
    • Under 52dB during normal operation, 60dB maximum
    • Clean power, low voltage ripple <.2 VDC RMS
    • 15 A, 220 VAC, duplex GFCI weatherproof receptacle with cover on 50 Hz Models
    • MIL-STD-704F and 18" NEC compliant
    • Energy saving thermal control cooling fan
    • Low profile fits under most wings
    • Sturdy all weather IP54 enclosure with cord hangers
    • Long life LED indicator lights that double as diagnostic tool
    • 20 ft (6.1 m) output cable with AN2551 aircraft DC connector on Single Models
    • 20 ft (6.1 m) and 50 ft (15.24 m) output cable with AN2551 aircraft DC connector on Dual Models (NOTE: 50 ft cable NOT used for starting engines)
    • Main disconnect switch
    • DC On/Off switch
    • Emergency stop switch
    • Large 9 in (23 cm) rubber ridgid and lockable swivel casters for easy maneuverability
    • Simple to use
    • 50 ft (12.2 m) input cable [100 ft (30.5 m) input cable optional] electric plug not included on input cable
    • Easy to change multi-volt transformer
    • CE marked
    • Finish: Durable Powder Coat Tronair Blue
    • Input:
    • Voltage Range 200-480V +/- 10%+/- 10%
    • Power 25 KVA
    • Phase 3
    • Frequency 50 or 60 Hz
    • Output:
    • Voltage 28.5 VDC
    • Current Limit (Adjustable) 100-2000 max amps DC
    • Continuous Power 600 amps at 28.5 VDC
    • Starting Power 2000 amps
    • Protection:
    • Output over/under voltage
    • Output over current
    • Input phase loss detection, missing phase
    • Input over/under voltage
    • Input Circuit Breaker 100 amps
    • Transformer over temperature
    • SCR over temperature

    Variants

    • 112850D0000 - 50HZ, DUAL SYSTEM, NO OUTPUT CORD
    • 112850D0100 - 50HZ, DUAL SYSTEM, 50FT OUTPUT CORD
    • 112850D0200 - 50HZ, DUAL SYSTEM, 100FT OUTPUT CORD
    • Currently Viewing 112850S0000 - 50HZ, SINGLE SYSTEM, NO OUTPUT CORD
    • 112850S0100 - 50HZ, SINGLE SYSTEM, 50FT OUTPUT CORD
    • 112850S0200 - 50HZ, SINGLE SYSTEM, 100FT OUTPUT CORD
    • 112860D0000 - 60HZ, DUAL SYSTEM, NO OUTPUT CORD
    • 112860D0100 - 60HZ, DUAL SYSTEM, 50FT OUTPUT CORD
    • 112860D0200 - 60HZ, DUAL SYSTEM, 100FT OUTPUT CORD
    • 112860S0000 - 60HZ, SINGLE SYSTEM, NO OUTPUT CORD
    • 112860S0100 - 60HZ, SINGLE SYSTEM, 50FT OUTPUT CORD
    • 112860S0200 - 60HZ, SINGLE SYSTEM, 100FT OUTPUT CORD
    621D43BE-AAC9-4713-B737-043D2DC5AC3E Aircraft Applications:
    View More
    View Product Details
  • 112850D0200
    View Product Details
    TRONAIR

    Rectifier (28.5 vdc, 50 Hz) 100 ft input cable, dual output cables (CE)

    112850D0200


    Standard Features

    • 2 year Tronair Platinum warranty
    • Under 52dB during normal operation, 60dB maximum
    • Clean power, low voltage ripple <.2 VDC RMS
    • 15 A, 220 VAC, duplex GFCI weatherproof receptacle with cover on 50 Hz Models
    • MIL-STD-704F and 18" NEC compliant
    • Energy saving thermal control cooling fan
    • Low profile fits under most wings
    • Sturdy all weather IP54 enclosure with cord hangers
    • Long life LED indicator lights that double as diagnostic tool
    • 20 ft (6.1 m) output cable with AN2551 aircraft DC connector on Single Models
    • 20 ft (6.1 m) and 50 ft (15.24 m) output cable with AN2551 aircraft DC connector on Dual Models (NOTE: 50 ft cable NOT used for starting engines)
    • Main disconnect switch
    • DC On/Off switch
    • Emergency stop switch
    • Large 9 in (23 cm) rubber ridgid and lockable swivel casters for easy maneuverability
    • Simple to use
    • 50 ft (12.2 m) input cable [100 ft (30.5 m) input cable optional] electric plug not included on input cable
    • Easy to change multi-volt transformer
    • CE marked
    • Finish: Durable Powder Coat Tronair Blue
    • Input:
    • Voltage Range 200-480V +/- 10%+/- 10%
    • Power 25 KVA
    • Phase 3
    • Frequency 50 or 60 Hz
    • Output:
    • Voltage 28.5 VDC
    • Current Limit (Adjustable) 100-2000 max amps DC
    • Continuous Power 600 amps at 28.5 VDC
    • Starting Power 2000 amps
    • Protection:
    • Output over/under voltage
    • Output over current
    • Input phase loss detection, missing phase
    • Input over/under voltage
    • Input Circuit Breaker 100 amps
    • Transformer over temperature
    • SCR over temperature

    Variants

    • 112850D0000 - 50HZ, DUAL SYSTEM, NO OUTPUT CORD
    • 112850D0100 - 50HZ, DUAL SYSTEM, 50FT OUTPUT CORD
    • Currently Viewing 112850D0200 - 50HZ, DUAL SYSTEM, 100FT OUTPUT CORD
    • 112850S0000 - 50HZ, SINGLE SYSTEM, NO OUTPUT CORD
    • 112850S0100 - 50HZ, SINGLE SYSTEM, 50FT OUTPUT CORD
    • 112850S0200 - 50HZ, SINGLE SYSTEM, 100FT OUTPUT CORD
    • 112860D0000 - 60HZ, DUAL SYSTEM, NO OUTPUT CORD
    • 112860D0100 - 60HZ, DUAL SYSTEM, 50FT OUTPUT CORD
    • 112860D0200 - 60HZ, DUAL SYSTEM, 100FT OUTPUT CORD
    • 112860S0000 - 60HZ, SINGLE SYSTEM, NO OUTPUT CORD
    • 112860S0100 - 60HZ, SINGLE SYSTEM, 50FT OUTPUT CORD
    • 112860S0200 - 60HZ, SINGLE SYSTEM, 100FT OUTPUT CORD
    621D43BE-AAC9-4713-B737-043D2DC5AC3E Aircraft Applications:
    View More
    View Product Details
  • 112850D0100
    View Product Details
    TRONAIR

    Rectifier (28.5 vdc, 50Hz) 50 ft input cable (CE)

    112850D0100


    Standard Features

    • 2 year Tronair Platinum warranty
    • Under 52dB during normal operation, 60dB maximum
    • Clean power, low voltage ripple <.2 VDC RMS
    • 15 A, 220 VAC, duplex GFCI weatherproof receptacle with cover on 50 Hz Models
    • MIL-STD-704F and 18" NEC compliant
    • Energy saving thermal control cooling fan
    • Low profile fits under most wings
    • Sturdy all weather IP54 enclosure with cord hangers
    • Long life LED indicator lights that double as diagnostic tool
    • 20 ft (6.1 m) output cable with AN2551 aircraft DC connector on Single Models
    • 20 ft (6.1 m) and 50 ft (15.24 m) output cable with AN2551 aircraft DC connector on Dual Models (NOTE: 50 ft cable NOT used for starting engines)
    • Main disconnect switch
    • DC On/Off switch
    • Emergency stop switch
    • Large 9 in (23 cm) rubber ridgid and lockable swivel casters for easy maneuverability
    • Simple to use
    • 50 ft (12.2 m) input cable [100 ft (30.5 m) input cable optional] electric plug not included on input cable
    • Easy to change multi-volt transformer
    • CE marked
    • Finish: Durable Powder Coat Tronair Blue
    • Input:
    • Voltage Range 200-480V +/- 10%+/- 10%
    • Power 25 KVA
    • Phase 3
    • Frequency 50 or 60 Hz
    • Output:
    • Voltage 28.5 VDC
    • Current Limit (Adjustable) 100-2000 max amps DC
    • Continuous Power 600 amps at 28.5 VDC
    • Starting Power 2000 amps
    • Protection:
    • Output over/under voltage
    • Output over current
    • Input phase loss detection, missing phase
    • Input over/under voltage
    • Input Circuit Breaker 100 amps
    • Transformer over temperature
    • SCR over temperature

    Variants

    • 112850D0000 - 50HZ, DUAL SYSTEM, NO OUTPUT CORD
    • Currently Viewing 112850D0100 - 50HZ, DUAL SYSTEM, 50FT OUTPUT CORD
    • 112850D0200 - 50HZ, DUAL SYSTEM, 100FT OUTPUT CORD
    • 112850S0000 - 50HZ, SINGLE SYSTEM, NO OUTPUT CORD
    • 112850S0100 - 50HZ, SINGLE SYSTEM, 50FT OUTPUT CORD
    • 112850S0200 - 50HZ, SINGLE SYSTEM, 100FT OUTPUT CORD
    • 112860D0000 - 60HZ, DUAL SYSTEM, NO OUTPUT CORD
    • 112860D0100 - 60HZ, DUAL SYSTEM, 50FT OUTPUT CORD
    • 112860D0200 - 60HZ, DUAL SYSTEM, 100FT OUTPUT CORD
    • 112860S0000 - 60HZ, SINGLE SYSTEM, NO OUTPUT CORD
    • 112860S0100 - 60HZ, SINGLE SYSTEM, 50FT OUTPUT CORD
    • 112860S0200 - 60HZ, SINGLE SYSTEM, 100FT OUTPUT CORD
    621D43BE-AAC9-4713-B737-043D2DC5AC3E Aircraft Applications:
    View More
    View Product Details
  • 112850D0000
    View Product Details
    TRONAIR

    Rectifier (28.5 vdc, 50Hz) no input cable (CE)

    112850D0000


    Standard Features

    • 2 year Tronair Platinum warranty
    • Under 52dB during normal operation, 60dB maximum
    • Clean power, low voltage ripple <.2 VDC RMS
    • 15 A, 220 VAC, duplex GFCI weatherproof receptacle with cover on 50 Hz Models
    • MIL-STD-704F and 18" NEC compliant
    • Energy saving thermal control cooling fan
    • Low profile fits under most wings
    • Sturdy all weather IP54 enclosure with cord hangers
    • Long life LED indicator lights that double as diagnostic tool
    • 20 ft (6.1 m) output cable with AN2551 aircraft DC connector on Single Models
    • 20 ft (6.1 m) and 50 ft (15.24 m) output cable with AN2551 aircraft DC connector on Dual Models (NOTE: 50 ft cable NOT used for starting engines)
    • Main disconnect switch
    • DC On/Off switch
    • Emergency stop switch
    • Large 9 in (23 cm) rubber ridgid and lockable swivel casters for easy maneuverability
    • Simple to use
    • 50 ft (12.2 m) input cable [100 ft (30.5 m) input cable optional] electric plug not included on input cable
    • Easy to change multi-volt transformer
    • CE marked
    • Finish: Durable Powder Coat Tronair Blue
    • Input:
    • Voltage Range 200-480V +/- 10%+/- 10%
    • Power 25 KVA
    • Phase 3
    • Frequency 50 or 60 Hz
    • Output:
    • Voltage 28.5 VDC
    • Current Limit (Adjustable) 100-2000 max amps DC
    • Continuous Power 600 amps at 28.5 VDC
    • Starting Power 2000 amps
    • Protection:
    • Output over/under voltage
    • Output over current
    • Input phase loss detection, missing phase
    • Input over/under voltage
    • Input Circuit Breaker 100 amps
    • Transformer over temperature
    • SCR over temperature

    Variants

    • Currently Viewing 112850D0000 - 50HZ, DUAL SYSTEM, NO OUTPUT CORD
    • 112850D0100 - 50HZ, DUAL SYSTEM, 50FT OUTPUT CORD
    • 112850D0200 - 50HZ, DUAL SYSTEM, 100FT OUTPUT CORD
    • 112850S0000 - 50HZ, SINGLE SYSTEM, NO OUTPUT CORD
    • 112850S0100 - 50HZ, SINGLE SYSTEM, 50FT OUTPUT CORD
    • 112850S0200 - 50HZ, SINGLE SYSTEM, 100FT OUTPUT CORD
    • 112860D0000 - 60HZ, DUAL SYSTEM, NO OUTPUT CORD
    • 112860D0100 - 60HZ, DUAL SYSTEM, 50FT OUTPUT CORD
    • 112860D0200 - 60HZ, DUAL SYSTEM, 100FT OUTPUT CORD
    • 112860S0000 - 60HZ, SINGLE SYSTEM, NO OUTPUT CORD
    • 112860S0100 - 60HZ, SINGLE SYSTEM, 50FT OUTPUT CORD
    • 112860S0200 - 60HZ, SINGLE SYSTEM, 100FT OUTPUT CORD
    621D43BE-AAC9-4713-B737-043D2DC5AC3E Aircraft Applications:
    View More
    View Product Details
