Showing 1 - 12 of 288
-
-
-
Standard Features
- Anodized aluminum housing
- #6 SAE female ports
- EPR or Vitron seals
- 2 micron absolute rating per ISO 4572
- Beta rating > 1000 at 4 micron
- Dirt capacity of 1.38 grams at < 50 psig
- 150 psi (10 bar) collapse rating
- 3,000 psi (207 bar) maximum pressure rating
- Length: 4.75 in (12 cm)
- Diameter: 1.5 in (3.8 cm)
- Dry Weight: 1 lb (.5 kg)
Aircraft Applications: -
Standard Features
- Anodized aluminum housing
- #6 SAE female ports
- EPR or Vitron seals
- 2 micron absolute rating per ISO 4572
- Beta rating > 1000 at 4 micron
- Dirt capacity of 1.38 grams at < 50 psig
- 150 psi (10 bar) collapse rating
- 3,000 psi (207 bar) maximum pressure rating
- Length: 4.75 in (12 cm)
- Diameter: 1.5 in (3.8 cm)
- Dry Weight: 1 lb (.5 kg)
Aircraft Applications: -
Standard Features
- Sturdy welded steel construction
- Holds 9 in (23 cm) 3,500 psi (241.3 bar) high pressure bottles
- Chain provided to secure bottles to cart
- Soft rubber tires prevent damage to floors
- Finish: Durable Powder Coat Tronair Blue
- Tilt-back positioning to stabilize load
Aircraft Applications: -

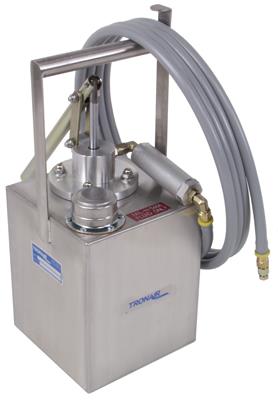

Vendor:TRONAIRRecommended, Hydraulic Reservoir Service Unit (2 gal/7.6 l) & (75psi/5.2 bar)
06-5022-6600
Standard Features
- Stainless steel construction
- 2 gal (7.6 l) reservoir
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 200 psi (13.8 bar) maximum pressure
- 2 in (5 cm) filler port
- High displacement hand pump (13 strokes per quart)
- 15 ft (4.6 m) #6 hose with 37º JIC female swivel connector
- Hose storage bracket
Aircraft Applications: -
Looking For Custom Parts?
Contact Us -

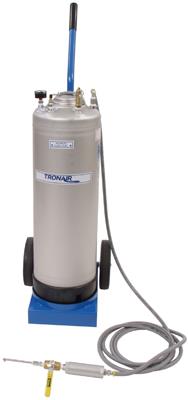

Standard Features
- ASME certified stainless steel reservoir
- 06-5009-Series, 06-5077-6700: 2.5 gal (9.5 l)
- 06-5010-Series: 6 gal (28 l)
- 2 micron filtration (beta rating > 1000 @ 4µm per ISO 4572)
- 100 psi (6.9 bar) certified pressure gauge
- 85 psi (5.9 bar) maximum pressure
- 125 psi (8.6 bar) safety pop off valve
- 15 ft (4.6 m) #4 hose with 37º JIC female swivel connector, shut off valve and filler tube
- 8 in (20 cm) semi-pneumatic tires - Model 06-5010 only
Aircraft Applications: -
-
-
-
-
