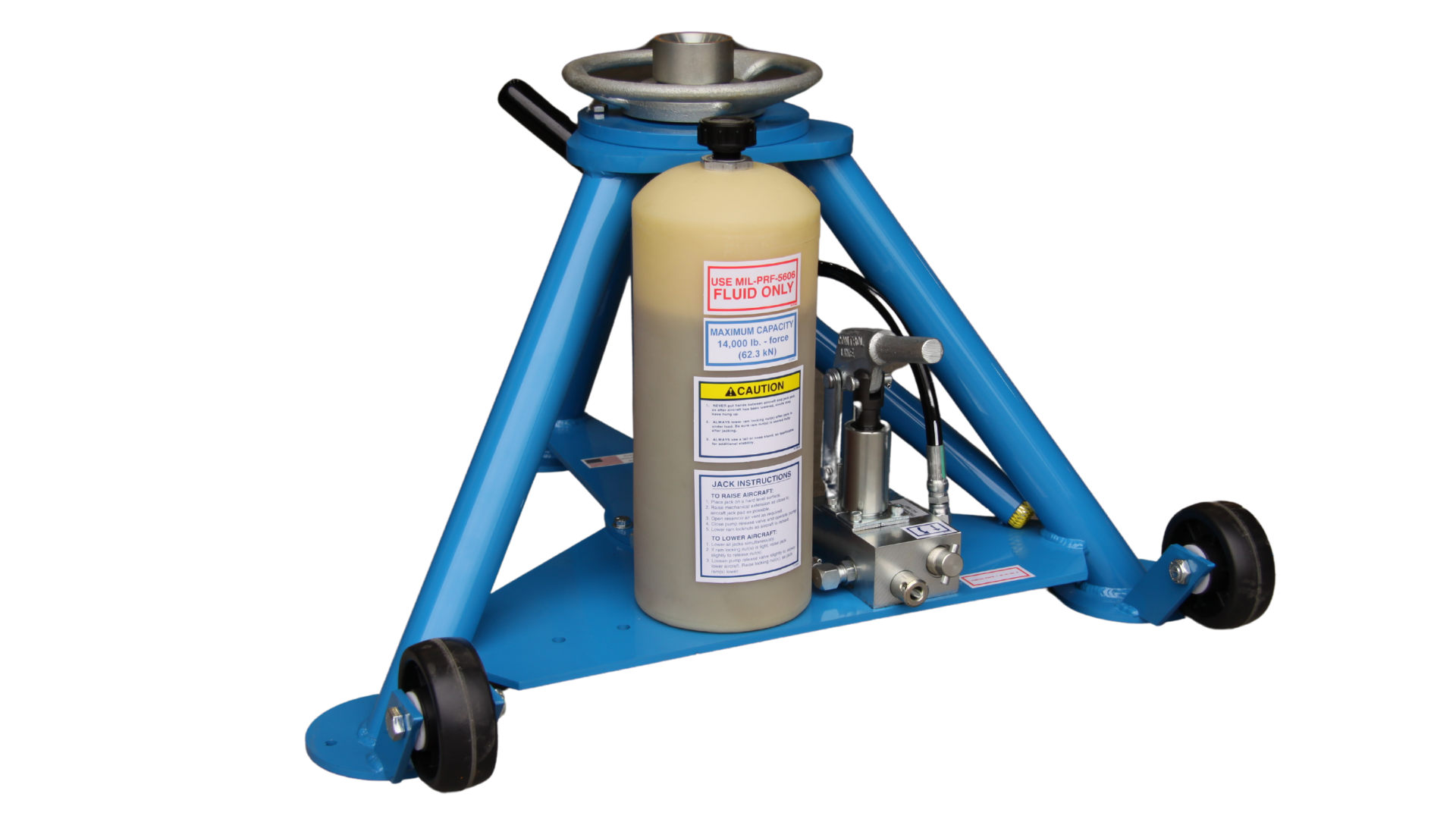

JACK, TRIPOD 7 TON (CE)

Performance

• Capacity Tons: 7

Dimensions

• Closed Height In (Cm): 17.75 (45.1)
• Extended Height In (Cm): 45.75 (116.2)
• Hydraulic Extension In (Cm) (Hydraulic Lift): 22 (55.88)
• Mechanical Extension In (Cm) (Extension Screw): 6 (15.24)
• Weight Lb (Kg): 135 (61.23)

Type/Other

• Single (S) Or Multi (M) Stage: M

• K-1685 — Kit, Repair Fluid Seal (AS REQUIRED)
• K-1686 — Kit, Repair Air Seal (AS REQUIRED)
• K-3441 — Seal Kit (AS REQUIRED)
• K-4588 — Ram O-Ring Kit (AS REQUIRED)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with Air Pump) (Airbus Helicopter (Eurocopter) - AS532 Cougar)
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Airbus Helicopter (Eurocopter) - H225 (EC225 Super Puma MKII+))
• K-1106 — Air Pump Manifold Kit (for use on tripod jacks with air pump) (Airbus Helicopter (Eurocopter) - H225M (EC725 Super Cougar))

• Current Operation and Service Manual
  Please Note, this is the latest version of the OSM. If you need an OSM specific to your model and serial number, please use our OSM Search Tool here.
